SST39VF800A

Status: Not Recommended for new designs

Features:

  • Organized as 512K x16
  • Single Voltage Read and Write Operations– 2.7-3.6V for SST39VF200A/400A/800A
  • Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
  • Low Power Consumption(typical values at 14 MHz)– Active Current: 9 mA (typical)– Standby Current: 3 µA (typical)
  • Sector-Erase Capability– Uniform 2 KWord sectors
  • Block-Erase Capability– Uniform 32 KWord blocks
  • Fast Read Access Time– 70 ns for SST39VF800A
  • Latched Address and Data
  • Fast Erase and Word-Program– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 70 ms (typical)– Word-Program Time: 14 µs (typical)– Chip Rewrite Time:8 seconds (typical) for SST39VF800A
  • Automatic Write Timing– Internal VPP Generation
  • End-of-Write Detection– Toggle Bit– Data# Polling
  • CMOS I/O Compatibility
  • JEDEC Standard– Flash EEPROM Pinouts and command sets
  • Packages Available– 48-lead TSOP (12mm x 20mm)– 48-ball TFBGA (6mm x 8mm)– 48-ball WFBGA (4mm x 6mm)– 48-bump XFLGA (4mm x 6mm) – 4 and 8Mbit
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

*Not Recommended For New Design*

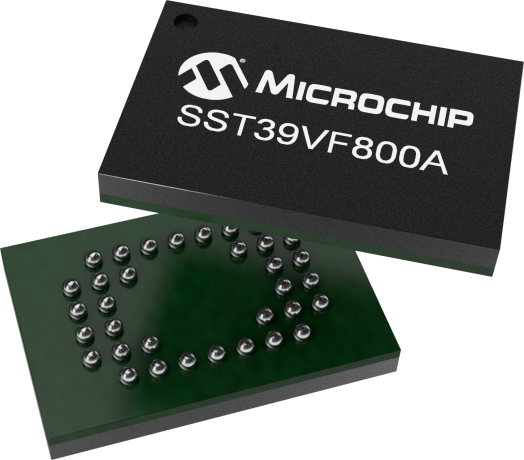

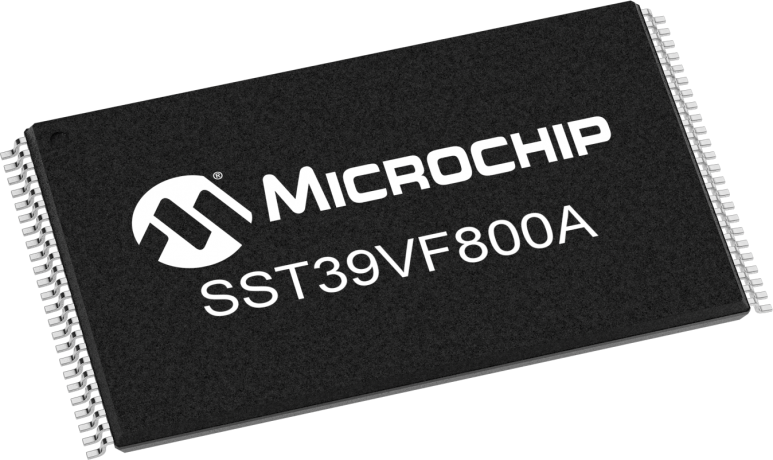

The SST39VF800A is a 512K x16 CMOS Multi-Purpose Flash (MPF) manufactured with proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF800A writes (Program or Erase) with a 2.7-3.6V power supply. This device conforms to JEDEC standard pinouts for x16 memories.

Please consider this device SST39VF801C, SST39VF802C

Additional Features
    • Organized as 512K x16
    • Single Voltage Read and Write Operations– 2.7-3.6V for SST39VF200A/400A/800A
    • Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
    • Low Power Consumption(typical values at 14 MHz)– Active Current: 9 mA (typical)– Standby Current: 3 µA (typical)
    • Sector-Erase Capability– Uniform 2 KWord sectors
    • Block-Erase Capability– Uniform 32 KWord blocks
    • Fast Read Access Time– 70 ns for SST39VF800A
    • Latched Address and Data
    • Fast Erase and Word-Program– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 70 ms (typical)– Word-Program Time: 14 µs (typical)– Chip Rewrite Time:8 seconds (typical) for SST39VF800A
    • Automatic Write Timing– Internal VPP Generation
    • End-of-Write Detection– Toggle Bit– Data# Polling
    • CMOS I/O Compatibility
    • JEDEC Standard– Flash EEPROM Pinouts and command sets
    • Packages Available– 48-lead TSOP (12mm x 20mm)– 48-ball TFBGA (6mm x 8mm)– 48-ball WFBGA (4mm x 6mm)– 48-bump XFLGA (4mm x 6mm) – 4 and 8Mbit
    • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
8 Mbit
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
0 kHz
Read Access Time
70 ns
Temp Range (°C)
-40°C to +125°C
Endurance
100,000
Data Retention (Years)
100

Documents

Jump to:

Brochures

12/19/2017
3698KB

Product Document

09/29/2010
40KB

IBIS

01/29/2013
6KB

Product Brief

Product Line Card


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K

0 kHz
TFBGA-48, TSOP-48, WFBGA-48
$1.25

0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.75
8 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.75

0 kHz
TFBGA-48, TSOP-48, WFBGA-48
$0.85
8 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.75
8 Mbit
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$0.75
8000K
0 kHz
TFBGA-48, WFBGA-48, XFLGA-48
$1.15

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST39VF800A-70-4C-M1QE
0.028100
0.513514
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4C-M1QE-T
0.028100
0.276667
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4I-M1QE-T
0.028100
0.276667
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4I-M1QE
0.028100
0.513514
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4C-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF800A-70-4C-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF800A-70-4I-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF800A-70-4I-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF800A-70-4I-B3KE-T-MCH
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF800A-70-4C-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4C-MAQE-T
0.028700
0.240800
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4I-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4I-MAQE-T
0.028700
0.240800
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF800A-70-4C-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF800A-70-4C-EKE-T
0.564500
0.940000
48
TSOP
12x20mm
Matte Tin
e3
SST39VF800A-70-4I-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF800A-70-4I-EKE-T
0.564500
0.940000
48
TSOP
12x20mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
