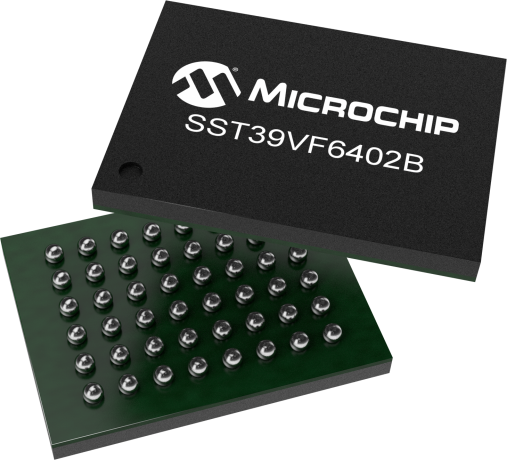

SST39VF6402B

64Mb 2.7-3.6V Parallel Flash

Status: In Production

Features:

  • Organized as 4M x16
  • 2.7-3.6V Read/Erase/Write Operation
  • Endurance: 100,000 Cycles (Typical)
  • Greater than 100 years Data Retention
  • Active Current: 9 mA (typical)
  • Standby Current: 3 µA (typical)
  • Auto Low Power Mode: 3 µA (typical)
  • Sector-Erase – Uniform 2 KWord sectors, 18 ms (typical)
  • Block-Erase – Uniform 32 KWord blocks, 18 ms (typical)
  • Chip-Erase – 40 ms (typical)
  • Erase-Suspend/Erase-Resume
  • Word-Program Time: 7 µs (typical)
  • Automatic Write Timing with Internal VPP Generation
  • End-of-Write Detection– Toggle Bits/Data# Polling
  • Fast Read Access Time: 70 ns– 90 ns
  • Top Block-Protection (top 32 KWord)for SST39VF6402B
  • Bottom Block-Protection (bottom 32 KWord)for SST39VF6401B
  • Hardware Reset Pin (RST#)
  • Security-ID Feature– SST: 128 bits; User: 128 bits
  • Latched Address and Data
  • Flash EEPROM Pin Assignments
  • Address format is 11 bits, A10-A0
  • Block-Erase 6th Bus Write Cycle is 30H
  • Sector-Erase 6th Bus Write Cycle is 50H
  • 48-lead TSOP (12mm x 20mm)
  • 48-ball TFBGA (8mm x 10mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

AMD/Spansion compatible command set
The SST39VF6402B device is a 4M x16, CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. This devices conforms to JEDEC standard pinouts for x16 memories and is command set compatible with Flash devices that support the AMD/Spansion command set, enabling customers to save time and resources in implementation.

Additional Features
    • Organized as 4M x16
    • 2.7-3.6V Read/Erase/Write Operation
    • Superior Reliability
      • Endurance: 100,000 Cycles (Typical)
      • Greater than 100 years Data Retention
    • Low Power Consumption (typical values at 5 MHz)
      • Active Current: 9 mA (typical)
      • Standby Current: 3 µA (typical)
      • Auto Low Power Mode: 3 µA (typical)
    • Fast Erase Capability
      • Sector-Erase – Uniform 2 KWord sectors, 18 ms (typical)
      • Block-Erase – Uniform 32 KWord blocks, 18 ms (typical)
      • Chip-Erase – 40 ms (typical)
      • Erase-Suspend/Erase-Resume
    • Fast Program
      • Word-Program Time: 7 µs (typical)
      • Automatic Write Timing with Internal VPP Generation
      • End-of-Write Detection– Toggle Bits/Data# Polling
    • Fast Read Access Time: 70 ns– 90 ns
    • Hardware Block-Protection/WP# Control Pin
      • Top Block-Protection (top 32 KWord)for SST39VF6402B
      • Bottom Block-Protection (bottom 32 KWord)for SST39VF6401B
    • Hardware Reset Pin (RST#)
    • Security-ID Feature– SST: 128 bits; User: 128 bits
    • Latched Address and Data
    • JEDEC Standard
      • Flash EEPROM Pin Assignments
      • Software command sequence compatibility
        • Address format is 11 bits, A10-A0
        • Block-Erase 6th Bus Write Cycle is 30H
        • Sector-Erase 6th Bus Write Cycle is 50H
    • Packages Available
      • 48-lead TSOP (12mm x 20mm)
      • 48-ball TFBGA (8mm x 10mm)
    • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
64 Mbit
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
0 kHz
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
100

Documents

Jump to:

Board Design Files

MISC


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
64000K
0 kHz
TFBGA-48, TSOP-48
$4.10

0 MHz
TFBGA-48, TSOP-48
$4.13
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$4.13
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$3.88
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$3.88

0 kHz
TFBGA-48, TSOP-48
$4.19

0 kHz
TFBGA-48, TSOP-48
$4.19

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST39VF6402B-70-4C-B1KE
0.142400
0.466667
48
TFBGA
8x10x1.2mm
SAC
e1
SST39VF6402B-70-4C-B1KE-T
0.142400
0.480000
48
TFBGA
8x10x1.2mm
SAC
e1
SST39VF6402B-70-4I-B1KE
0.142400
0.466667
48
TFBGA
8x10x1.2mm
SAC
e1
SST39VF6402B-70-4I-B1KE-T
0.142400
0.480000
48
TFBGA
8x10x1.2mm
SAC
e1
SST39VF6402B-70-4C-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF6402B-70-4I-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF6402B-70-4C-EKE-T
0.564500
0.940000
48
TSOP
12x20mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
