SST39VF1601C

16Mb 2.7-3.6V Parallel Flash

Status: In Production

Features:

  • Organized as 1M x16: SST39VF1601C/1602C
  • Low Power Consumption (typical values at 5 MHz) – Active Current: 9 mA (typical) – Standby Current: 3 µA (typical) – Auto Low Power Mode: 3 µA (typical)
  • Hardware Block-Protection/WP# Input Pin – Top Block-Protection (top 8 KWord) – Bottom Block-Protection (bottom 8 KWord)
  • Sector-Erase Capability – Uniform 2 KWord sectors
  • Block-Erase Capability – Flexible block architecture; one 8-, two 4-, one 16-, and thirty one 32-KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature – SST: 128 bits; User: 128 words
  • Fast Erase and Word-Program: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 40 ms (typical) – Word-Program Time: 7 µs (typical)

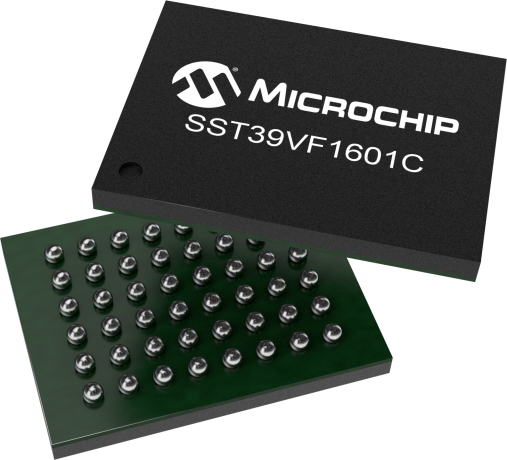

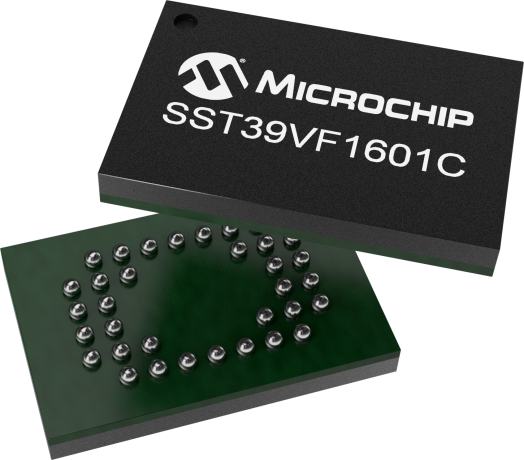

  • Packages Available – 48-lead TSOP (12mm x 20mm) – 48-ball TFBGA (6mm x 8mm) – 48-ball WFBGA (4mm x 6mm)
  • All devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST39VF1601C device is 1M x16 CMOS Multi-Purpose Flash Plus (MPF+) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39VF1601C writes (Program or Erase) with a 2.7-3.6V power supply. This device conforms to JEDEC standard pinouts for x16 memories.

Additional Features
  • Organized as 1M x16: SST39VF1601C/1602C
  • Low Power Consumption (typical values at 5 MHz)– Active Current: 9 mA (typical)– Standby Current: 3 µA (typical)– Auto Low Power Mode: 3 µA (typical)
  • Hardware Block-Protection/WP# Input Pin– Top Block-Protection (top 8 KWord)– Bottom Block-Protection (bottom 8 KWord)
  • Sector-Erase Capability– Uniform 2 KWord sectors
  • Block-Erase Capability– Flexible block architecture; one 8-, two 4-, one16-, and thirty one 32-KWord blocks
  • Chip-Erase Capability
  • Erase-Suspend/Erase-Resume Capabilities
  • Hardware Reset Pin (RST#)
  • Security-ID Feature– SST: 128 bits; User: 128 words
  • Fast Erase and Word-Program:– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 40 ms (typical)– Word-Program Time: 7 µs (typical)
  • Packages Available– 48-lead TSOP (12mm x 20mm)– 48-ball TFBGA (6mm x 8mm)– 48-ball WFBGA (4mm x 6mm)
  • All devices are RoHS compliant
Parametrics
Name
Value
Density
16 Mbit
Op. Volt Range (V)
2.7 to 3.6
Read Access Time
70 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Brochures

12/19/2017
3698KB
10/06/2014
3370KB

Product Brief

Product Line Card

Brochures

09/19/2012
740KB

Development Environment

  • Demo & Evaluation Boards
  • Application Examples
Demo & Evaluation Boards
Parallel SuperFlash Kit 1
Parallel SuperFlash Kit 1 ( AC243006-1 )

The Parallel Flash PICtailTM Plus Daughter Board is an evaluation board designed to interface with PICtailTM Plus connector found on the Explorer 16 Development Board. The Parallel SuperFlash® Kit 1 contains two Parallel Flash PICtailTM Plus Daughter Boards.

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16000K
0 MHz
TFBGA-48, TSOP-48
$1.92
16000K
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$1.01
16000K
0 MHz
TFBGA-48, TSOP-48
$1.35
16000K
0 MHz
TFBGA-48, TSOP-48, WFBGA-48
$1.01
16000K
0 MHz
TFBGA-48, TSOP-48
$1.48
16000K
0 MHz
TFBGA-48, TSOP-48
$1.48
16000K
0 MHz
TFBGA-48, WFBGA-48
$1.40
16000K
0 MHz
TFBGA-48, WFBGA-48
$1.46

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST39VF1601C-70-4C-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF1601C-70-4I-B3KE
0.094100
0.666667
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF1601C-70-4I-B3KE-MCF-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF1601C-70-4C-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF1601C-70-4I-B3KE-T
0.094100
0.336000
48
TFBGA
6x8x1.2mm
SAC
e1
SST39VF1601C-70-4C-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF1601C-70-4I-MAQE
0.028700
0.459460
48
WFBGA
4x6x0.73mm
SAC
e1
SST39VF1601C-70-4C-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF1601C-70-4C-EKE-T
0.564500
0.940000
48
TSOP
12x20mm
Matte Tin
e3
SST39VF1601C-70-4I-EKE
0.564500
2.770833
48
TSOP
12x20mm
Matte Tin
e3
SST39VF1601C-70-4I-EKE-T
0.564500
0.940000
48
TSOP
12x20mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
