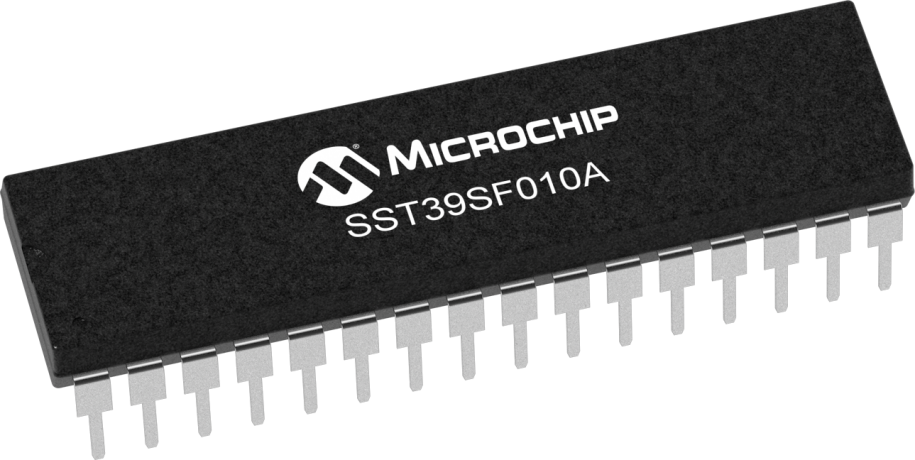

product primary image

SST39SF010A

1Mb 4.5-5.5V Parallel Flash

Status: In Production

Features:

  • Organized as 128K x8 / 256K x8 / 512K x8
  • Single 4.5-5.5V Read and Write Operations
  • Superior Reliability – Endurance: 100,000 Cycles (typical) – Greater than 100 years Data Retention
  • Low Power Consumption (typical values at 14 MHz) – Active Current: 10 mA (typical) – Standby Current: 30 µA (typical)
  • Sector-Erase Capability – Uniform 4 KByte sectors
  • Fast Read Access Time: – 55 ns – 70 ns
  • Latched Address and Data
  • Automatic Write Timing – Internal VPP Generation
  • Fast Erase and Byte-Program – Sector-Erase Time: 18 ms (typical) – Chip-Erase Time: 70 ms (typical) – Byte-Program Time: 14 µs (typical) – Chip Rewrite Time: 2 seconds (typical) for SST39SF010A 4 seconds (typical) for SST39SF020A 8 seconds (typical) for SST39SF040
  • End-of-Write Detection – Toggle Bit – Data# Polling
  • TTL I/O Compatibility
  • JEDEC Standard – Flash EEPROM Pinouts and command sets
  • Packages Available – 32-lead PLCC – 32-lead TSOP (8mm x 14mm) – 32-pin PDIP
  • All devices are RoHS compliant
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST39SF010A is a CMOS Multi-Purpose Flash (MPF) manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST39SF010A writes (Program or Erase) with a 4.5-5.5V power supply, and conforms to JEDEC standard pinouts for x8 memories.

Additional Features
  • Organized as 128K x8 / 256K x8 / 512K x8
  • Single 4.5-5.5V Read and Write Operations
  • Superior Reliability– Endurance: 100,000 Cycles (typical)– Greater than 100 years Data Retention
  • Low Power Consumption(typical values at 14 MHz)– Active Current: 10 mA (typical)– Standby Current: 30 µA (typical)
  • Sector-Erase Capability– Uniform 4 KByte sectors
  • Fast Read Access Time:– 55 ns– 70 ns
  • Latched Address and Data
  • Automatic Write Timing– Internal VPP Generation
  • Fast Erase and Byte-Program– Sector-Erase Time: 18 ms (typical)– Chip-Erase Time: 70 ms (typical)– Byte-Program Time: 14 µs (typical)– Chip Rewrite Time:2 seconds (typical) for SST39SF010A4 seconds (typical) for SST39SF020A8 seconds (typical) for SST39SF040
  • End-of-Write Detection– Toggle Bit– Data# Polling
  • TTL I/O Compatibility
  • JEDEC Standard– Flash EEPROM Pinouts and command sets
  • Packages Available– 32-lead PLCC– 32-lead TSOP (8mm x 14mm)– 32-pin PDIP
  • All devices are RoHS compliant
  • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
1 Mbit
Op. Volt Range (V)
4.5 to 5.5
Read Access Time
55 ns
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
100

Documents

Jump to:

Brochures

12/19/2017
3698KB
06/24/2015
740KB

Board Design Files

06/23/2015
5KB
06/23/2015
5KB
06/23/2015
5KB

Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
1024K
1 kHz
PLCC-32, TSOP-32
$0.56
1024K
0
PDIP-32, PLCC-32, TSOP-32
$0.58
1024K
0
PLCC-32, TSOP-32
$0.46

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST39SF010A-45-4I-NHE
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-55-4C-NHE
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-55-4C-NHE-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-55-4I-NHE
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-55-4I-NHE-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-70-4C-NHE
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-70-4C-NHE-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-70-4I-NHE
1.129000
2.333333
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-70-4I-NHE-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-45-4I-NHE-T
1.129000
1.896000
32
PLCC
11.5x14x3.37mm
Matte Tin
e3
SST39SF010A-55-4C-WHE
0.249700
1.442308
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-55-4C-WHE-T
0.249700
0.333333
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-55-4I-WHE
0.249700
1.442308
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-55-4I-WHE-T
0.249700
0.333333
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-70-4C-WHE
0.249700
1.442308
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-70-4C-WHE-T
0.249700
0.333333
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-70-4I-WHE
0.249700
1.442308
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-70-4I-WHE-T
0.249700
0.333333
32
TSOP
8x14mm
Matte Tin
e3
SST39SF010A-70-4C-PHE
5.227600
6.363636
32
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.

Buy from the Microchip Store

Grid
