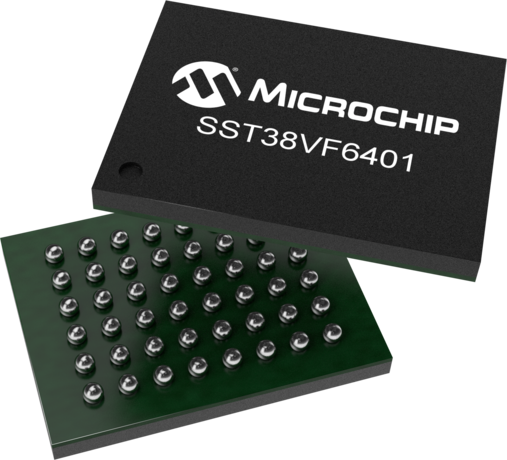

SST38VF6401

64Mb 2.7-3.6V Parallel Flash

Status: In Production

Features:

  • Organized as 4M x16
  • Single Voltage Read and Write Operations – 2.7-3.6V
  • Superior Reliability – Endurance: up to 100,000 Cycles minimum – Greater than 100 years Data Retention
  • Low Power Consumption (typical values at 5 MHz) – Active Current: 4 mA (typical) – Standby Current: 3 µA (typical) – Auto Low Power Mode: 3 µA (typical)
  • 128-bit Unique ID
  • Security-ID Feature – 256 Word, user One-Time-Programmable
  • Protection and Security Features – Hardware Boot Block Protection/WP# Input Pin, Uniform (32 KWord) and Non-Uniform (8 KWord) options available – User-controlled individual block (32 KWord) protection, using software only methods – Password protection
  • Hardware Reset Pin (RST#)
  • Fast Read and Page Read Access Times: – 90 ns Read access time – 25 ns Page Read access times - 4-Word Page Read buffer
  • Latched Address and Data
  • Fast Erase Times: – Sector-Erase Time: 18 ms (typical) – Block-Erase Time: 18 ms (typical) – Chip-Erase Time: 40 ms (typical)
  • Erase-Suspend/-Resume Capabilities
  • Fast Word and Write-Buffer Programming Times: – Word-Program Time: 7 µs (typical) – Write Buffer Programming Time: 1.75 µs / Word (typical) - 16-Word Write Buffer
  • Automatic Write Timing – Internal VPP Generation
  • End-of-Write Detection – Toggle Bits – Data# Polling – RY/BY# Output
  • CMOS I/O Compatibility
  • JEDEC Standard – Flash EEPROM Pinouts and command sets
  • CFI Compliant
  • Packages Available – 48-lead TSOP – 48-ball TFBGA
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST38VF6401 is a 4M x16 CMOS Advanced Multi-Purpose Flash Plus (Advanced MPF+) manufactured with SST proprietary, high-performance CMOS Super- Flash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches. The SST38VF6401 writes (Program or Erase) with a 2.7-3.6V power supply. This device conforma to JEDEC standard pin assignments for x16 memories.

Additional Features
  • Organized as 4M x16
  • Single Voltage Read and Write Operations– 2.7-3.6V
  • Superior Reliability– Endurance: up to 100,000 Cycles minimum– Greater than 100 years Data Retention
  • Low Power Consumption (typical values at 5 MHz)– Active Current: 4 mA (typical)– Standby Current: 3 µA (typical)– Auto Low Power Mode: 3 µA (typical)
  • 128-bit Unique ID
  • Security-ID Feature– 256 Word, user One-Time-Programmable
  • Protection and Security Features– Hardware Boot Block Protection/WP# Input Pin,Uniform (32 KWord) and Non-Uniform (8 KWord)options available– User-controlled individual block (32 KWord) protection,using software only methods– Password protection
  • Hardware Reset Pin (RST#)
  • Fast Read and Page Read Access Times:– 90 ns Read access time– 25 ns Page Read access times- 4-Word Page Read buffer
  • Latched Address and Data
  • Fast Erase Times:– Sector-Erase Time: 18 ms (typical)– Block-Erase Time: 18 ms (typical)– Chip-Erase Time: 40 ms (typical)
  • Erase-Suspend/-Resume Capabilities
  • Fast Word and Write-Buffer ProgrammingTimes:– Word-Program Time: 7 µs (typical)– Write Buffer Programming Time: 1.75 µs / Word(typical)- 16-Word Write Buffer
  • Automatic Write Timing– Internal VPP Generation
  • End-of-Write Detection– Toggle Bits– Data# Polling– RY/BY# Output
  • CMOS I/O Compatibility
  • JEDEC Standard– Flash EEPROM Pinouts and command sets
  • CFI Compliant
  • Packages Available– 48-lead TSOP– 48-ball TFBGA
  • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
64 Mbit
Op. Volt Range (V)
2.7 to 3.6
Max. Clock Freq.
0 kHz
Read Access Time
90 ns
Page Size (bytes)
8
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Data Sheet

Brochures

12/19/2017
3698KB
10/06/2014
3370KB

IBIS

01/29/2013
4KB
01/29/2013
4KB

Product Brief

Product Line Card

Brochures

09/19/2012
740KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
Parallel SuperFlash Kit 1
Parallel SuperFlash Kit 1 ( AC243006-1 )

The Parallel Flash PICtailTM Plus Daughter Board is an evaluation board designed to interface with PICtailTM Plus connector found on the Explorer 16 Development Board. The Parallel SuperFlash® Kit 1 contains two Parallel Flash PICtailTM Plus Daughter Boards.

Learn More
Add To Cart

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
64000K
0 kHz
TFBGA-48, TSOP-48
$4.10

0 MHz
TFBGA-48, TSOP-48
$4.13
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$4.13
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$3.88
64000K
0 kHz
TFBGA-48, TSOP-48
$4.24

0 MHz
TFBGA-48, TSOP-48
$3.88

0 kHz
TFBGA-48, TSOP-48
$3.82

0 kHz
TFBGA-48, TSOP-48
$4.19
