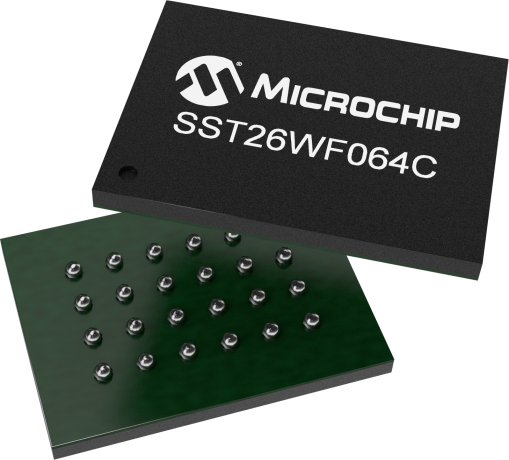

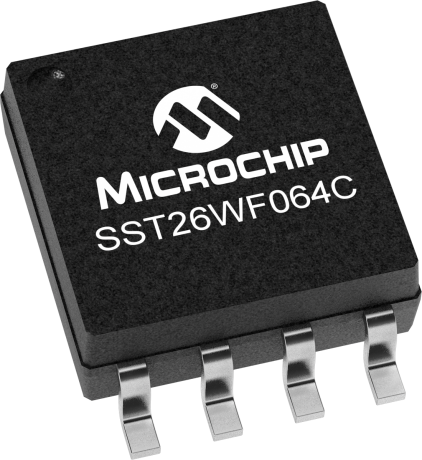

SST26WF064C

64Mb 1.65-1.95V Serial Quad I/O (SQI) Flash

Status: In Production

Features:

  • Single Voltage Read and Write Operations - 1.65 V - 1.95V
  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol
  • Nibble-wide multiplexed I/O’s with SPI-like serial command structure
  • Dual-Transfer Rate (DTR) Operation
  • 104 MHz max
  • 54 MHz max (DTR)
  • Continuous linear burst
  • 8/16/32/64 Byte linear burst with wrap-around
  • Endurance: 100,000 Cycles (min)
  • Greater than 100 years Data Retention
  • Active Read current: 15mA (typical@104MHz)
  • Standby current: 10μA(typical)
  • Deep Power-Down current: 2.5μA(typical)
  • Sector/Block Erase: 18 ms (typ), 25 ms (max)
  • Chip Erase: 35 ms (typ), 50 ms (max)
  • 256 Bytes per page in x1or x4mode
  • Uniform 4Kbyte sectors
  • Four 8Kbyte top and bottom parameter overlay blocks
  • One 32Kbyte top and bottom overlay block
  • Uniform 64Kbyte overlay blocks
  • Suspend Program or Erase operation to access another block/sector
  • Software and Hardware Reset mode
  • Supports JEDEC-compliant Serial Flash Discoverable Parameter (SFDP) table
  • Individual-Block Write Protection with permanent lock-down capability
  • Read Protection on top and bottom 8Kbyte parameter blocks
  • One-Time Programmable (OTP) 2KByte, Secure ID
  • 64 bit unique, factory pre-programmed identifier
  • User-programmable area
  • Industrial: -40°C to +85°C
  • 8-contact WDFN (6mm x 5mm)
  • 8-lead SOIJ (5.28 mm)
  • 16-lead SOIC( 7.50mm)
  • 24-ball TBGA (8mmx6mm)
  • All devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST26WF064C Serial Quad I/O (SQI) flash device utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26WF064C also supports full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26WF064C enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The SST26WF064C writes (Program or Erase) with a single power supply of 1.65-1.95V and significantly lower power consumption. The device’s low power consumption makes it the ideal choice for wireless and any battery powered devices. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability.

Additional Features
    • Single Voltage Read and Write Operations - 1.65 V - 1.95V
    • Serial Interface Architecture
      • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol
      • Nibble-wide multiplexed I/O’s with SPI-like serial command structure
      • Dual-Transfer Rate (DTR) Operation
    • High Speed Clock Frequency
      • 104 MHz max
      • 54 MHz max (DTR)
    • Burst Modes
      • Continuous linear burst
      • 8/16/32/64 Byte linear burst with wrap-around
    • Superior Reliability
      • Endurance: 100,000 Cycles (min)
      • Greater than 100 years Data Retention
    • Low Power Consumption:
      • Active Read current: 15mA (typical@104MHz)
      • Standby current: 10μA(typical)
      • Deep Power-Down current: 2.5μA(typical)
    • Fast Erase Time
      • Sector/Block Erase: 18 ms (typ), 25 ms (max)
      • Chip Erase: 35 ms (typ), 50 ms (max)
    • Page-Program
      • 256 Bytes per page in x1or x4mode
    • Flexible Erase Capability
      • Uniform 4Kbyte sectors
      • Four 8Kbyte top and bottom parameter overlay blocks
      • One 32Kbyte top and bottom overlay block
      • Uniform 64Kbyte overlay blocks
    • Write-Suspend
      • Suspend Program or Erase operation to access another block/sector
    • Software and Hardware Reset mode
    • Supports JEDEC-compliant Serial Flash Discoverable Parameter (SFDP) table
    • Software Protection
      • Individual-Block Write Protection with permanent lock-down capability
      • Read Protection on top and bottom 8Kbyte parameter blocks
    • Security ID
      • One-Time Programmable (OTP) 2KByte, Secure ID
      • 64 bit unique, factory pre-programmed identifier
      • User-programmable area
    • Temperature Range
      • Industrial: -40°C to +85°C
    • Packages Available
      • 8-contact WDFN (6mm x 5mm)
      • 8-lead SOIJ (5.28 mm)
      • 16-lead SOIC( 7.50mm)
      • 24-ball TBGA (8mmx6mm)
    • All devices are RoHS compliant
Parametrics
Name
Value
Density
64 Mbit
Op. Volt Range (V)
1.65 to 1.95
Max. Clock Freq.
104 MHz
Page Size (bytes)
256
Temp Range (°C)
-40°C to +85°C
Endurance
100,000
Data Retention (Years)
100
Bus Modes
SPI,SDI,SQI

Documents

Jump to:

Data Sheets

07/11/2017
3485KB

Brochures

12/19/2017
3698KB

aspxDeviceInfo

07/04/2016
0B

Software

11/08/2017
533KB

Product Selection Tools


Development tools data is currently unavailable.

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
64Mb
104 MHz
SOIC 300mil-16, SOIJ-8, TBGA-24, TDFN-8, TDFN-S-8
$1.95
64Mb
104 MHz
SOIC 300mil-16, SOIJ-8, TDFN-S-8
$2.05
64Mb
104 MHz
SOIJ-8, TBGA-24, TDFN-S-8
$2.18

RoHS Information

Part Number
Device Weight
Shipping Weight
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST26WF064C-104I/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
Rohs icon
efup china icon
SST26WF064CT-104I/SM
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
Rohs icon
efup china icon
SST26WF064C-104I/MF
0.073800
0.163265
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
Rohs icon
efup china icon
SST26WF064CT-104I/MF
0.073800
0.200000
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
Rohs icon
efup china icon
SST26WF064C-104I/TD
0.666667
24
TBGA
6x8x1.2mm
SAC
e1
Rohs icon
efup china icon
SST26WF064CT-104I/TD
0.336000
24
TBGA
6x8x1.2mm
SAC
e1
Rohs icon
efup china icon
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
