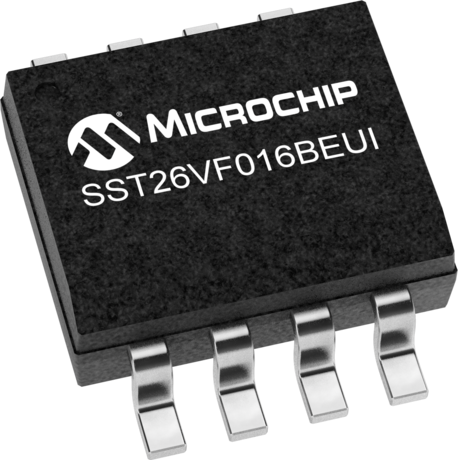

product primary image

SST26VF016BEUI

16Mbit Serial Quad I/O (SQI) Flash with EUI

Status: In Production

Features:

  • Factory-programmed with EUI-48™ and EUI-64™ Global Unique Identifier
  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
  • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
  • Page-Program- 256 Bytes per page in x1 or x4 mode
  • Industrial -40C to +85C
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST26VF016BEUI Serial Quad I/O (SQI) flash device is factory-programmed with EUI-48™ and EUI-64™ identifier and utilizes a 4-bit multiplexed I/O serial interface to boost performance while maintaining the compact form factor of standard serial flash devices. SST26VF016BEUI also support full command-set compatibility to traditional Serial Peripheral Interface (SPI) protocol. Operating at frequencies reaching 104 MHz, the SST26VF016BEUI enables minimum latency execute-in-place (XIP) capability without the need for code shadowing on an SRAM. The device’s high performance and reliability make it the ideal choice for Network Appliance, Smart Home, Wireless Connectivity, Computing, Digital TV, Smart Meter, Datacenter, \ Automotive and other Industrial applications. Further benefits are achieved with SST’s proprietary, high-performance CMOS SuperFlash® technology, which significantly improves performance and reliability, and lowers power consumption for high bandwidth, compact designs.

Additional Features
  • Factory-programmed with EUI-48™ and EUI-64™ Global Unique Identifier
  • x1/x2/x4 Serial Peripheral Interface (SPI) Protocol and SQI protocol
  • Burst Modes- Continuous linear burst, 8/16/32/64 Byte linear burst with wrap-around
  • Page-Program- 256 Bytes per page in x1 or x4 mode
  • Flexible Erase Capability- Uniform 4 KByte sectors, Four 8 KByte top and bottom parameter overlay blocks, One 32 KByte top and bottom overlay block, Uniform 64 KByte overlay blocks
  • Software Write Protection- Individual Block-Locking: 64 KByte blocks, two 32 KByte blocks, and eight 8 KByte parameter blocks
  • Low Power Consumption: Active Read current: 15 mA (typical @ 104 MHz), Standby Current: 15 µA (typical), Deep Power-Down Current: 2.5uA (typical)
  • SFDP (Serial Flash Discoverable Parameters)
  • Packages Available: 8-lead SOIC
  • All devices are RoHS compliant
  • Industrial -40C to +85C
Parametrics
Name
Value
Density
16 Mbit
Op. Volt Range (V)
2.3 to 3.6
Max. Clock Freq.
104 MHz
Page Size (bytes)
256
Temp Range (°C)
See Data Sheet for Specific Temperature Range
Endurance
100,000
Data Retention (Years)
100

Documents

Jump to:

Data Sheets

02/01/2019
2630KB

Board Design Files

Brochures

12/19/2017
3698KB

Code Examples

Software Libraries/Firmware

02/28/2018
408KB

Development Environment

  • Code Examples

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
16M
50 MHz
SOIJ-8, TDFN-S-8
$1.10
16000K
80 MHz
SOIJ-8, TDFN-S-8
$0.97

104 MHz
SOIC-8, SOIJ-8, TDFN-S-8
$0.96

104 MHz
SOIC-8
$1.20
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$0.99
16Mb
104 MHz
CSP-8, SOIC-8, TDFN-S-8
$1.04

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST26VF016BEUI-104I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
SST26VF016BEUIT-104I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
