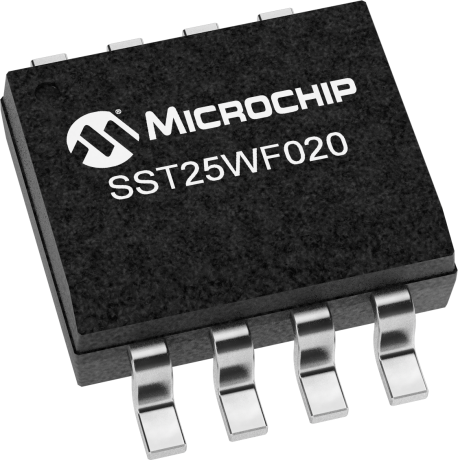

SST25WF020

Status: End of Life

Features:

  • Single Voltage Read and Write Operations– 1.65-1.95V
  • Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
  • High Speed Clock Frequency– 40MHz
  • Superior Reliability– Endurance: 100,000 Cycles– Greater than 100 years Data Retention
  • Ultra-Low Power Consumption:– Active Read Current: 2 mA (typical @ 20MHz)– Standby Current: 2 µA (typical)
  • Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks
  • Fast Erase and Byte-Program:– Chip-Erase Time: 125 ms (typical)– Sector-/Block-Erase Time: 62ms (typical)– Byte-Program Time: 50 µS (typical)
  • Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations
  • End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin
  • Reset Pin (RST#) or Programmable Hold Pin(HOLD#) option– Hardware Reset pin as default– Hold pin option to suspend a serial sequencewithout deselecting the device
  • Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register
  • Software Write Protection– Write protection through Block-Protection bits instatus register
  • Temperature Range– Industrial: -40°C to +85°C
  • Packages Available– 8-lead SOIC (150 mils)– 8-contact WSON (5mm x 6mm)
  • All non-Pb (lead-free) devices are RoHS compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

The SST25WF020 is a member of the Serial Flash 25 Series family and features a four-wire, SPI-compatible interface that allows for a low pin-count package, which occupies less board space and ultimately lowers total system costs. SST25WF020 SPI serial flash memory is manufactured with SST proprietary, high performance CMOS SuperFlash technology. The split-gate cell design and thick-oxide tunneling injector attain better reliability and manufacturability compared with alternate approaches.

The SST25WF020 End of Life notification is available on-line EOL NOTIFICATION

Please consider this device SST25WF020A

Additional Features
    • Single Voltage Read and Write Operations– 1.65-1.95V
    • Serial Interface Architecture– SPI Compatible: Mode 0 and Mode 3
    • High Speed Clock Frequency– 40MHz
    • Superior Reliability– Endurance: 100,000 Cycles– Greater than 100 years Data Retention
    • Ultra-Low Power Consumption:– Active Read Current: 2 mA (typical @ 20MHz)– Standby Current: 2 µA (typical)
    • Flexible Erase Capability– Uniform 4 KByte sectors– Uniform 32 KByte overlay blocks– Uniform 64 KByte overlay blocks
    • Fast Erase and Byte-Program:– Chip-Erase Time: 125 ms (typical)– Sector-/Block-Erase Time: 62ms (typical)– Byte-Program Time: 50 µS (typical)
    • Auto Address Increment (AAI) Programming– Decrease total chip programming time overByte-Program operations
    • End-of-Write Detection– Software polling the BUSY bit in Status Register– Busy Status readout on SO pin
    • Reset Pin (RST#) or Programmable Hold Pin(HOLD#) option– Hardware Reset pin as default– Hold pin option to suspend a serial sequencewithout deselecting the device
    • Write Protection (WP#)– Enables/Disables the Lock-Down function of thestatus register
    • Software Write Protection– Write protection through Block-Protection bits instatus register
    • Temperature Range– Industrial: -40°C to +85°C
    • Packages Available– 8-lead SOIC (150 mils)– 8-contact WSON (5mm x 6mm)
    • All non-Pb (lead-free) devices are RoHS compliant
Parametrics
Name
Value
Density
2 Mbit
Op. Volt Range (V)
1.65 to 1.95
Max. Clock Freq.
40 MHz
Temp Range (°C)
-40°C to +85°C
Endurance
100,000

Documents

Jump to:

Board Design Files


14KB

MISC


32KB

Development Environment

  • Code Examples

Similar Devices

Product
Memory Size
Memory Speed
Package
Price 5K
2000K
33 MHz
SOIC-8, TDFN-S-8
$0.44
2 Mbit
80 MHz
SOIC-8, TDFN-S-8, USON-8
$0.59

20 MHz
SOIC-8, TDFN-S-8
$0.47
2000K
80 MHz
SOIC-8, TDFN-S-8, USON-8
$0.59
2 Mbit
40 MHz
SOIC-8, TDFN-S-8, UDFN-8, WLCSP-9
$0.58

104 MHz
SOIC-8, TDFN-S-8
$0.59

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST25WF020-40-5I-SAF
0.075000
0.163265
8
SOIC
3.90mm(.150in)
NiPdAu
e4
SST25WF020-40-5I-SAF-T
0.075000
0.250000
8
SOIC
3.90mm(.150in)
NiPdAu
e4
SST25WF020AT-40I/CS
N/A
0.064667
9
WLCSP
Varies
SAC
e1
SST25WF020A-40I/SN
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
SST25WF020AT-40I/SN
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
SST25WF020A-40I/MF
0.073800
0.163265
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020AT-40I/MF
0.073800
0.200000
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020-40-5I-QAE
0.073800
0.163265
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020-40-5I-QAE-T
0.073800
0.200000
8
TDFN-S
6x5x0.8mm
Matte Tin
e3
SST25WF020AT-40I/NP
0.006200
0.150000
8
UDFN
2x3x0.55mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
