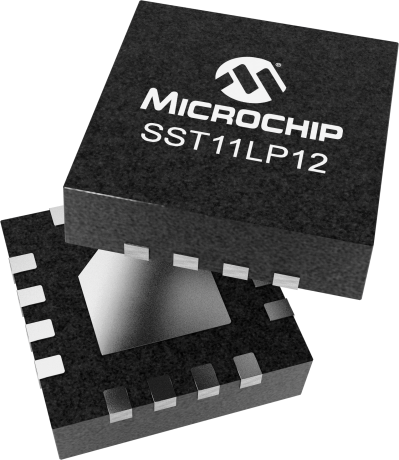

product primary image

SST11LP12

Status: Not Recommended for new designs

Features:

  • High gain
  • High linear output power: – Meets 802.11a OFDM Spectrum Mask requirements up to 24 dBm over the entire band – Added EVM <3% up to 20 dBm for 54 Mbps 802.11a signal – Meets 802.11n HT40 Spectrum Mask requirements typically up to 20 dBm
  • High power-added efficiency/Low operating current for 6 Mbps 802.11a applications – ~17% @ POUT = 23 dBm for 6 Mbps
  • Simple input/output matching Applications:
  • WLAN (IEEE 802.11a/n)
  • Japan WLAN
  • HyperLAN2
  • Multimedia
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SST11LP12 is a high-power, high-gain power amplifier based on the highly-reliable InGaP/GaAs HBT technology. It is configured for high-power, high-efficiency applications with superb power-added efficiency while operating over the entire 802.11a frequency band for U.S., European, and Japanese markets (4.9-5.8 GHz). The power amplifier IC features easy board-level usage along with high-speed power-up/down control and is offered in a 16-contact WQFN package.

Additional Features
  • High gain
  • High linear output power:– Meets 802.11a OFDM Spectrum Mask requirements up to 24 dBm over the entire band– Added EVM <3% up to 20 dBm for 54 Mbps 802.11a signal– Meets 802.11n HT40 Spectrum Mask requirements typicallyup to 20 dBm
  • High power-added efficiency/Low operating current for 6 Mbps 802.11a applications– ~17% @ POUT = 23 dBm for 6 Mbps
  • Simple input/output matchingApplications:
  • WLAN (IEEE 802.11a/n)
  • Japan WLAN
  • HyperLAN2
  • Multimedia
Parametrics
Name
Value
Type
Power Ampllifier
Gain
28-34
Linear Power
20
Voltage min
3.0
Voltage max
4.2
Freq min
5.0
Freq max
5.9
Technology
InGaP/GaAs HBT
Application
802.11a/n

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Description
Gain
Linear Power
Voltage (V)
Price 5K
High Efficiency IEEE 802.11 a/n/ac PA
26 - 29
17.5/19.5
3 - 5
$0.66
High Power IEEE 802.11 a/n PA
28-34
20
3.0 - 4.2
$0.75
High Power IEEE 802.11 b/g/n PA
34
25
3.0 - 5
$1.07
2.4 GHz High Power IEEE 802.11b/g/n/256QAM Power Amplifier
37
25
4.0 - 5.5
$0.76
50 Ohm-matched 2.4GHz FEM with PA+LNA+BT bypass
28
19
3 - 4.2
$0.68
50 Ohm Fully Matched LNA: 2.4GHz
12

3.0 - 4.2
$0.50
Normal Power IEEE 802.11 b/g PA
28
20.5
3.0 - 4.2
$0.34
High Gain IEEE 802.11 b/g/n PA
30
20
2.75 - 4.2
$0.32

30
20
3.0 - 4.2
$0.63
High Power IEEE 802.11 b/g/n PA
32
22
3.0 - 4.2
$0.65
High Power IEEE 802.11 b/g/n PA
32
22
3.0 - 4.2
$0.53

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SST11LP12-QCF
0.021900
0.295000
16
WQFN
3x3x0.75mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
