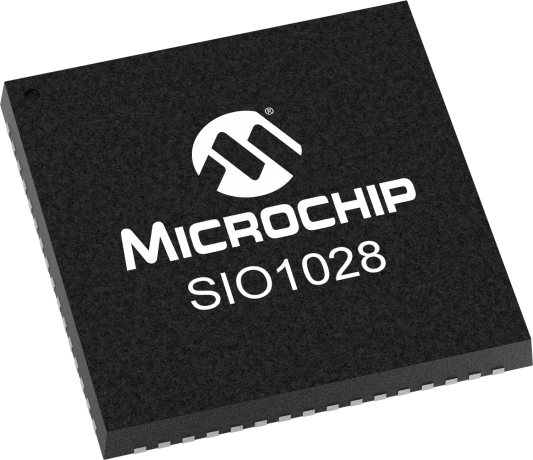

product primary image

SIO1028

Microcontrollers and Processors

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SIO1028 is a single chip LPC I/O device as well as a 3.3V operational (5.0V tolerant), PC 99/2001, and ACPI 1.0 compliant Super I/O Controller.

This device includes 24 GPIO pins, support for two LED’s with blinking option and a Watchdog Timer (WDT) with optional output pin. It also has three 16C550A compatible UARTs, one of which includes additional support for a Serial Infrared Interface that complies with IrDA v1.2 (Fast IR), HPSIR, and ASKIR formats, as well as Consumer IR.

Family parts
SIO1028I-JZX
SIO1028I-JZX-TR
SIO1028-JZX
SIO1028-JZX-TR

Additional Features
  • ACPI 1.0 Compliant
  • LPC Interface
  • 64 STQFP Package
  • 3.3V Operating Voltage
  • 24 GPIO Pins
  • 3 16C550A Compatible UARTs
  • Watchdog Timer
Parametrics
Name
Value
GPIO Pins
24
Operating Voltage
3.3V
Op Temp Max
70
Interface
LPC

Documents

Jump to:

Silicon Product

06/26/2014
0B

IBIS

07/20/2009
317KB

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SIO1028I-JZX
0.232400
1.634615
64
QFN
9x9x0.9mm
Matte Tin
e3
SIO1028I-JZX-TR
0.232400
0.200000
64
QFN
9x9x0.9mm
Matte Tin
e3
SIO1028-JZX
0.232400
1.634615
64
QFN
9x9x0.9mm
Matte Tin
e3
SIO1028-JZX-TR
0.232400
0.200000
64
QFN
9x9x0.9mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
