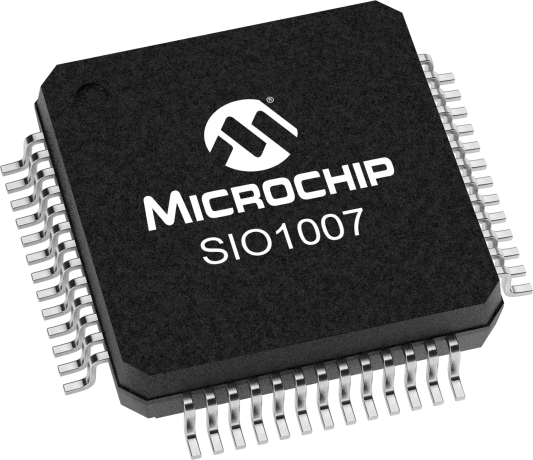

product primary image

SIO1007

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SIO1007 is a 3.3V PC 99 and ACPI 1.0 compliant Super I/O Controller. It implements the LPC interface with the LPC PortSwitchTM Interface. The LPC PortSwitchTM interface is a hot-switchable external Docking LPC interface with trusted cycle block.

This device also features a full 16-bit internally decoded address bus, a Serial IRQ interface with PCI nCLKRUN support, relocatable configuration ports and three DMA channel options. Two UARTs provided, one of which can support a Serial Infrared Interface that complies with IrDA v1.2 (Fast IR), HPSIR, and ASKIR formats (used by Sharp and other PDAs), as well as Consumer IR.

Sophisticated power control circuitry (PCC), which supports multiple low power down modes, is included. The I/O Address, DMA Channel and Hardware IRQ of each device in the SIO1007 may be reprogrammed through the internal configuration registers.

Family parts
SIO1007-JV

Additional Features
  • ACPI 1.0 Compliant
  • LPC Interface with PortSwitchTM
  • 64 STQFP Package
  • 3.3V Operating Voltage
  • 16 GPIO Pins
  • 1 8-pin 16C550A Compatible UART
  • Serial Infrared Interface
  • 2 IR Ports
  • 192 I/O address location options
  • Serialized IRQ interface
  • Three DMA channels
  • Software Configurable Logic (SCL)
  • ISA Plug-and-Play Standard register set supported and provides the recommended functionality to support Windows ‘9x, 2K, ME, XP, and PCC99
Parametrics
Name
Value
GPIO Pins
16
Operating Voltage
3.3V
Op Temp Max
70
Interface
LPC

Documents

Jump to:

Silicon Product

06/26/2014
0B

Development tools data is currently unavailable.

Similar Devices

Product
Price 5K

$0.62
$0.67
$1.35
$0.89
$2.79


$7.28
$9.62
$5.35
$5.78
$8.65
$5.56
$2.30
$5.07
$1.35
$1.80
$2.44
$4.99

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SIO1007-JV
0.176300
1.440000
64
STQFP
7x7x1.4
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
