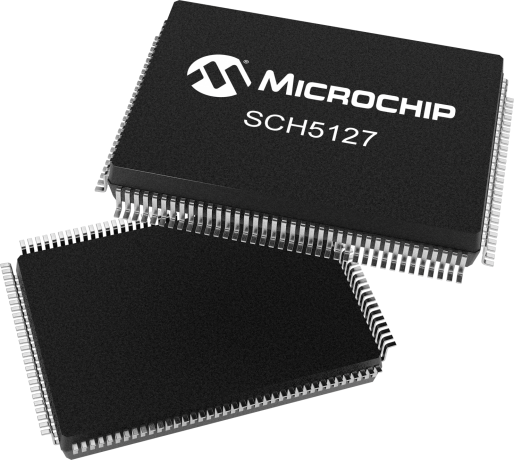

SCH5127

Super I/O controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH5127 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface, and includes Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic.

There are five analog inputs for monitoring external voltages as well as internal monitoring of the SIO’s VCC (emulated power well), VTR (signal power well), and VBAT power supplies, and can alert the system to out-of-limit conditions and automatically control the speeds of multiple fans.

Complete legacy Super I/O functionality including a floppy disk controller with SMSC's true CMOS 765B core and enhanced digital data separator are incorporated. The true CMOS (Complementary Metal-Oxide-Semiconductor) 765B core provides 100% compatibility with IBM PC/XTTM and PC/ATTM architectures and is software and register compatible with SMSC's proprietary 82077AA core.

Family parts
SCH5127-NW

Additional Features
  • 8042 Keyboard Controller
  • 128 QFP Packaging
  • Legacy I/O
  • 30 GPIO Pins
  • State Machine Fan Control Engine
  • IEEE 1284, EPP, and ECP Compatible Parallel Port
  • One IrDA 1.0 Infrared Port
  • One 16C550A UART-compatible serial port
  • 3 PWM Outputs
  • 3 fan tachometer inputs
  • ACPI 1.0/2.0 Compatible
  • Hardware monitoring: temperature, voltage, and fan speed monitoring
  • Motherboard Glue logic: various power management and system logic (generation of nRSMRST, SMBus isolation buffers, and buffered PCI reset outputs)
Parametrics
Name
Value
Customer Programmable RAM
N
Intruder Detection
Y
Operating Temperature
0° C to +70° C
PCH Temp Monitoring
N
Tach
3
Deep Sleep S5
N
Glue Logic
Y
8024 Keyboard Controller
Y
PCI Resets
4
RRCC Auto Fan
N
Legacy I/O
Y
GPIO
30
PWM
3
Package
128 QFP
SMBus Interface
N
Security Key Register
N
AMD SB-TSI
N
Resume Reset
Y
System Controller
State Machine
Fan Control Engine
State Machine
