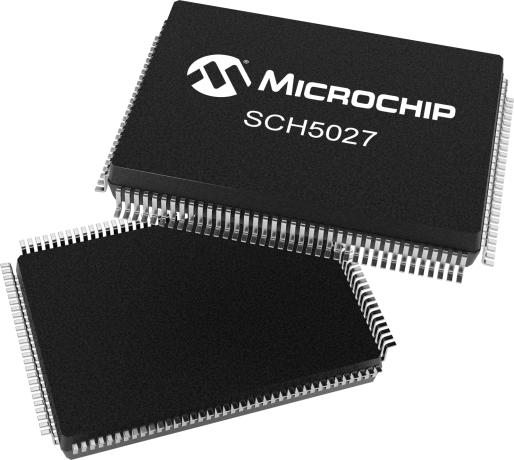

SCH5027

Super I/O Controller

Status: In Production

View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH5027 is a 3.3V (Super I/O Block is 5V tolerant) PC99/PC2001 compliant Super I/O controller with an LPC interface. It includes Hardware Monitoring capabilities, enhanced Security features, Power Control logic and Motherboard Glue logic.

There are four analog inputs for monitoring external voltages, and internal monitoring of the SIO’s VCC (emulated power well), VTR (signal power well), and VBAT power supplies. It can also monitor two external diodes, one internal ambient temperature sensor or retrieving temperatures from external processors that implement the PECI (Platform Environment Control Interface).

Complete legacy Super I/O functionality including a floppy disk controller with SMSC's true CMOS 765B core and enhanced digital data separator are incorporated. The true CMOS 765B core provides 100% compatibility with IBM PC/XT and PC/AT architectures and is software and register compatible with SMSC's proprietary 82077AA core. Additionally, it supports multiple low power-down modes and incorporates sophisticated power control circuitry and allows for a two- or three-piece linear fan function.

Family parts
SCH5027D-NW
SCH5027E-NW

Additional Features
  • 8042 Keyboard Controller
  • 128 QFP Packaging
  • 25 GPIO
  • 32 byte Security Key Register
  • State Machine Fan Control Engine
  • X1 CPU, x2 domain C3/C4
  • SMBus Interface (slave only)
  • Glue logic
  • IEEE 1284, EPP, and ECP Compatible Parallel Port
  • One 16C550A UART-compatible serial port
  • One IrDA 1.0 Infrared Port
  • 5 PWM Outputs
  • 6 fan tachometer inputs
  • ACPI 1.0/2.0 Compatible
  • Hardware monitoring: temperature, voltage, and fan monitoring
Parametrics
Name
Value
Customer Programmable RAM
N
Intruder Detection
Y
Operating Temperature
0° C to +70° C
PCH Temp Monitoring
N
Tach
6
Deep Sleep S5
N
Glue Logic
Y
8024 Keyboard Controller
Y
PCI Resets
4
PECI Support
x1 CPU, x2 domain, C3/C4
RRCC Auto Fan
N
Legacy I/O
Y
GPIO
25
PWM
5
Package
128 QFP
SMBus Interface
Y, (Slave Only)
Security Key Register
32 byte
AMD SB-TSI
N
Resume Reset
Y
System Controller
State Machine
Fan Control Engine
State Machine

Documents

Jump to:

Board Design Files


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78
