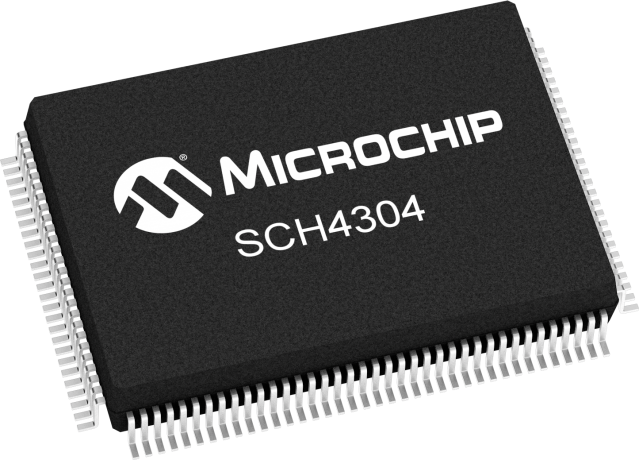

product primary image

SCH4304

Super I/O Controller

Status: In Production

Features:

  • X-Bus interface
  • 128-pin QFP package
  • LPC interface with serial IRQ pin
  • Floppy disk controller
  • Multi-mode parallel port
  • 8024 Keyboard controller
  • Watchdog timer
  • Security register
  • Low battery warning
  • ACPI support register for monitoring system sleep state
  • XNOR chain
  • PC2001 compliant
  • ACPI 2.0 compliant
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The SCH5017 is a 3.3V Super I/O controller with an LPC interface. It also includes auto fan support, a real time clock, LED support, two full UARTs, and a multi-mode parallel port.

The product provides support for monitoring two external temperatures via thermal diode inputs and an internal sensor for measuring ambient temperature and allows for a two or three-piece linear fan function. This incorporates SMBus Backdoor Access to all registers, and supports up to three T03 sensor devices, and up to nine sensors, each of which can be assigned to any one or more of the three auto fan controls. The SMBus Slave Interface has a default I2C address 5ch for HWM registers and 6ch to RTC registers.

Family parts
SCH4304-NS

Additional Features
    • X-Bus interface
    • 128-pin QFP package
    • LPC interface with serial IRQ pin
    • Floppy disk controller
    • Multi-mode parallel port
    • 8024 Keyboard controller
    • Watchdog timer
    • Security register
    • Low battery warning
    • ACPI support register for monitoring system sleep state
    • XNOR chain
    • PC2001 compliant
    • ACPI 2.0 compliant
Parametrics
Name
Value
Fan Tachometer Inputs
8
8024 Keyboard Controller
Y
PECI Support
N
GPIO
51
PWM
3
Package
128 QFP
SMBus Interface
Y
Security Key Register
Y
AMD SB-TSI
N

Documentation data is currently unavailable.


Development tools data is currently unavailable.

Similar Devices

Product
Price 5K
$2.75
$2.75
$3.31
$1.76
$1.90
$2.03
$2.16
$2.27

$3.96
$3.93

$4.21
$5.06

$5.06
$2.89
$3.45
$3.23
$3.58
$5.62
$6.69
$5.56
$11.01
$1.58
$1.67
$2.41
$2.49
$2.53
$2.75
$5.56
$2.53
$2.75
$1.55
$2.53

$2.53
$2.53
$2.53
$2.78

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
SCH4304-NS
1.806400
6.803030
128
QFP
14x20x2.7
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
