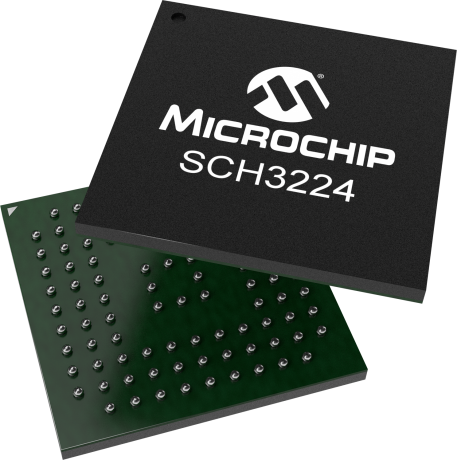

The SCH3224 is a 3.3V Super I/O Controller with an LPC
interface. It includes Keyboard Controller, Hardware Monitoring capabilities,
Power Control logic, and Motherboard Glue logic. The device provides a
parallel port, 4 full serial ports and the option for two additional 4-Pin
serial ports. The serial ports are fully functional NS16550 compatible
UARTs that support data rates up to 1.5 Mbps.
Hardware Monitoring capability has programmable, automatic fan control. Three fan tachometer inputs and three pulse width modulator (PWM) fan control outputs are available. In addition, HWM includes temperature, voltage and fan speed monitoring. It can alert the system to out of limit conditions and automatically control the speed of multiple fans in response.
System related functionality, which offers flexibility to the system designer, included 40 General Purpose I/O (GPIO) control functions and control of two LED's.
The SCH3224 is available in commercial (0°C to +70°C and industrial (-40°C to +85°C) temperature ranges.
SCH3224I-SY (FIX DESC)
For pricing and availability, contact Microchip Local Sales.
