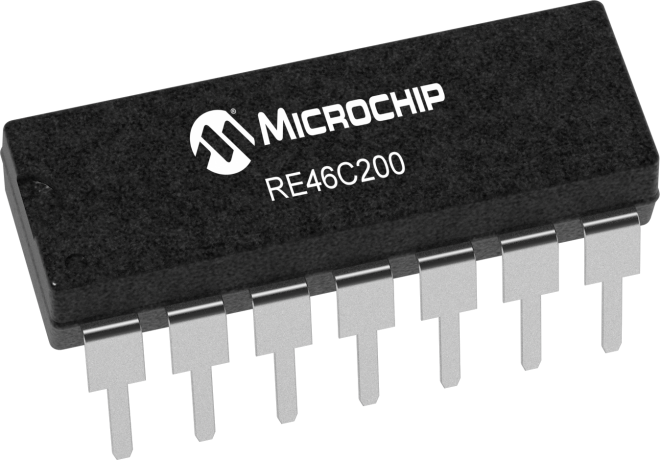

product primary image

RE46C200

Status: In Production

Features:

  • 6.5 – 12V Operation
  • Low Quiescent Current
  • Internal IRED driver with Programmable IRED Current
  • Programmable Photo Amplifier
  • Programmable Smoke Alarm Levels
  • 6 bit ADC
  • Smart Hush for Reduced Sensitivity Operation
  • Chamber Test with Programmable Alarm Level
  • Long Term Drift Adjustment
  • Programmable Low Battery Test
  • Interconnect up to 40 Detectors
  • Smart IO for CO Alarm
  • Local Alarm Memory
  • Horn Synchronization
  • Auto Alarm Locate
  • 10 Year End of Life Indication
  • Temporal or Continuous Horn Pattern
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

The RE46C200 is a next generation 9-volt, low current programmable photoelectric smoke detector IC.  This circuit will provide all the required features for a photoelectric smoke detector with minimal external components.  Programmable setup, calibration and feature selection are the key to reduced component count and reduced manufacturing costs.  The programmable feature set provides a highly flexible means of designing a smoke detector with different features using a single IC.  The design incorporates a gain selectable integrating photo amplifier for use with an infrared emitter/detector pair.  An internal oscillator strobes power to the smoke detection circuitry for 5ms every 10 seconds to keep standby current to a minimum. The RE46C200 was designed for use in smoke detectors that comply with Underwriters Laboratory Specification UL217 and UL268.

Additional Features
    • 6.5 – 12V Operation
    • Low Quiescent Current
    • Internal IRED driver with Programmable IRED Current
    • Programmable Photo Amplifier
    • Programmable Smoke Alarm Levels
    • 6 bit ADC
    • Smart Hush for Reduced Sensitivity Operation
    • Chamber Test with Programmable Alarm Level
    • Long Term Drift Adjustment
    • Programmable Low Battery Test
    • Interconnect up to 40 Detectors
    • Smart IO for CO Alarm
    • Local Alarm Memory
    • Horn Synchronization
    • Auto Alarm Locate
    • 10 Year End of Life Indication
    • Temporal or Continuous Horn Pattern
Parametrics
Name
Value
Type
Photoelectric
Horn Driver Alarm Pattern
NFPA Temporal or Continuous Tone
Low Battery Detect
True
Reverse Battery Protection
False
Alarm Interconnect
True
Sensitivty Timer
True
Powerup Low Battery
False
Alternate Diagnostics Mode
False
Chamber Test
True
Internal POR
True
Operating Temperature Range (C)
-10C to 60C

Documents

Jump to:

Development tools data is currently unavailable.

Similar Devices

Product
Horn Driver Alarm Pattern
Price 5K
NFPA Temporal or Continuous Tone
$0.54
NFPA Temporal
$0.54
NFPA Temporal
$0.57
Continuous Tone
$0.54
Continuous Tone
$0.57
Continuous Tone
$0.57
NFPA Temporal
$0.60
NFPA Temporal
$0.60
Continuous Tone
$0.60
Continuous Tone
$0.60
NFPA Temporal
$0.76
NFPA Temporal or Continuous Tone
$0.54
NFPA Temporal or Continuous Tone

NFPA Temporal or Continuous Tone

NFPA Temporal

Continuous Tone
$0.71
NFPA Temporal

Continuous Tone

NFPA Temporal or Continuous Tone
$0.83
NFPA Temporal or Continuous Tone
$0.94
NFPA Temporal or Continuous Tone
$0.94
NFPA Temporal or Continuous Tone

NFPA Temporal or Continuous Tone
$0.81

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
RE46C200S14F
0.143200
0.280702
14
SOIC
.150In(3.90mm)
Matte Tin
e3
RE46C200S14TF
0.143200
0.325000
14
SOIC
.150In(3.90mm)
Matte Tin
e3
RE46C200E14F
0.953300
1.833333
14
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
