Status: In Production

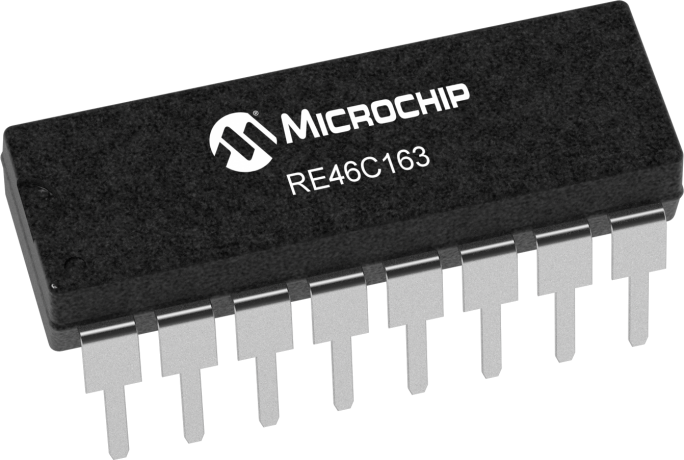

The RE46C163 device is a low-power, CMOS ionization type, smoke detector IC. With few external components, this circuit will provide all the required features for an ionization type smoke detector. An internal oscillator strobes power to the smoke detection circuitry for 10.5 ms every 1.67 seconds to keep standby current to a minimum. A check for a low battery condition is performed every 40 seconds when in standby. An external pin enables the selection of a continuous tone or NFPA temporal horn pattern. An interconnect pin allows multiple detectors to be connected so when one unit alarms, all units will sound. A charge dump feature will quickly discharge the interconnect line when exiting a local alarm. The interconnect input is also digitally filtered. An internal 1 minute timer allows for a single button, push-to-test to be used for a reduced sensitivity mode. An alarm memory feature allows the user to determine if the unit has previously entered a local alarm condition. Utilizing low-power CMOS technology, the RE46C163 device is designed for use in smoke detectors that comply with Underwriters Laboratory Specification UL217 and UL268.
Development tools data is currently unavailable.
Rohs data is currently unavailable.
For pricing and availability, contact Microchip Local Sales.
