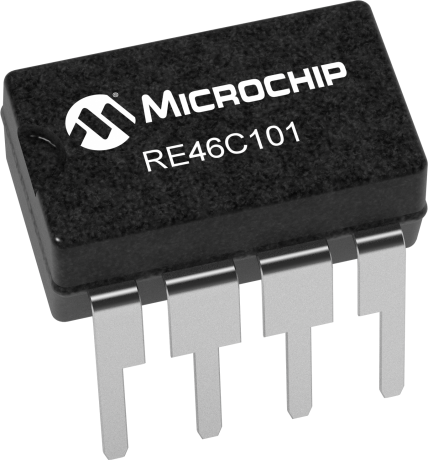

product primary image

RE46C101

Status: In Production

Features:

  • Low Quiescent Current (<100na)
  • Low Driver Ron - 20ohm typical at 9V
  • Wide Operating Voltage Range
  • 8 Pin DIP and SO Packages
  • Available in Standard Packaging or RoHS Compliant Pb Free Packaging
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add to Cart

Device Overview

Summary

The RE46C101 is intended for applications using a self oscillating piezoelectric horn although it can be used in direct drive applications. Feedback control and a driver circuit are provided as well as a horn enable function. The design also provides an open drain N-channel driver suitable for use with a light emitting diode.

Additional Features
  • Low Quiescent Current (<100na)
  • Low Driver Ron - 20ohm typical at 9V
  • Wide Operating Voltage Range
  • 8 Pin DIP and SO Packages
  • Available in Standard Packaging or RoHS Compliant Pb Free Packaging
Parametrics
Name
Value
Operating Voltage (Vdc)
6 to 16
LED Driver
True
Low Battery Detection
False
Interconnect
False
Power Good
False
Brown Out
False
Charge Pump
False
Inductive Boost
False
Operating Temperature Range (°C)
0C to 50C

Documents

Jump to:
×

Data Sheets

Piezoelectric Horn Driver and LED Driver Circuit

83KB

Brochures

Analog and Interface Product Selector Guide

5052KB

Development tools data is currently unavailable.

Similar Devices

Product
Operating Voltage
LED Driver
Voltage Regulator
Price 5K
RE46C100
6V - 16V
False

$0.33
RE46C101
6V - 16V
True

$0.37
RE46C104
4V - 8V
False

$0.71
RE46C105
6V - 12V
True
3.3V or 5V
$0.71
RE46C107
2V - 5V
True
3V or 3.3V
$0.84
RE46C108
6V - 12V
False
3.3V or 5V
$0.60
RE46C109
6V - 12V
False
3V
$1.15
RE46C117
2V - 5V
False

$0.84
RE46C119
6V - 12V
False
3V
$1.15
RE46C317
2V - 5V
False

$0.72
RE46C318
2V - 5V
False

$0.72
RE46C800
2V - 12V
True
3.3V
$0.72
RE46C803
2V - 3V
True
3.3V
$0.70

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
RE46C101E8
0.000000
0.866667
8
PDIP
.300in
SnPb
e0
RE46C101S8F
0.078000
0.250000
8
SOIC
.150In(3.90mm)
Matte Tin
e3
RE46C101S8TF
0.078000
0.230303
8
SOIC
.150In(3.90mm)
Matte Tin
e3
RE46C101E8F
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
