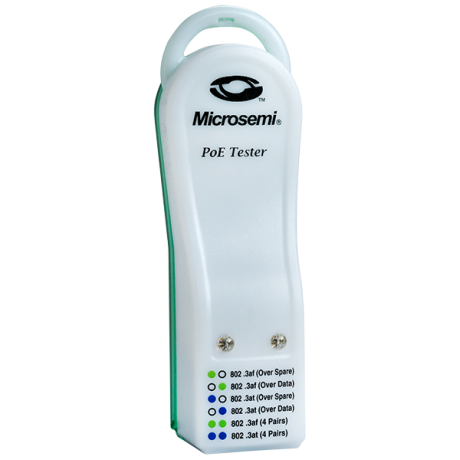

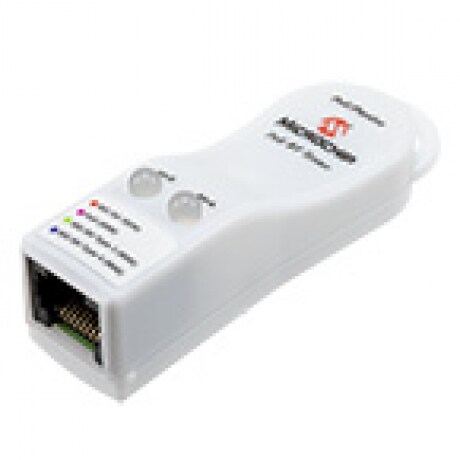

PoE-Tester

PoE tester to test RJ-45 for PoE

Status: In Production

Features:

  • Detects: IEEE 802.3af, IEEE 802.3at, 4-pairs PSE
  • Operating temperature: 0ºC to 40ºC
  • Regulatory compliance: CE
  • Indicators: midspan LED display (green/blue)
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The Power over Ethernet (PoE) tester when connected to an RJ-45 outlet, tests the cabling infrastructure for the presence of power, either IEEE 802.3af or IEEE 802.3at (2-pairs 30W or 4-pairs 60W). The PoE tester also identifies the existence and type of the power sourcing equipment in your network. PD-AFAT-Tester has a compact design specifically tailored for system integrators and installers. It is plug and play / simple to use.

Additional Features
  • Detects: IEEE 802.3af, IEEE 802.3at, 4-pairs PSE
  • Operating temperature: 0ºC to 40ºC
  • Regulatory compliance: CE
  • Indicators: midspan LED display (green/blue)
Parametrics
Name
Value
Product Type
PoE Accessories
PoE Systems Type
PoE Tester
PoE Standard
NA
Power Per Port
NA
Operating Environment
Indoor
Number of Ports
NA
Data Rate
1G
Managed
NA
Input Power
PoE
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Warranty (Years)
1

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-AFATBT-TESTER
20.00000
70.00000
N/A
N/A
177x152x75mm
N/A
N/A
PD-AFAT-TESTER
20.00000
70.00000
N/A
N/A
177x152x75mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
