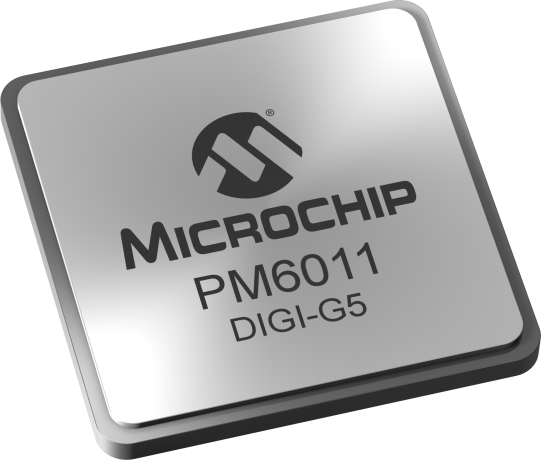

PM6011

DIGI-G5 OTN Processor (no Encryption)

Status: In Production

Features:

  • High-capacity OTN processor with total interface bandwidth of up to 1.2Tbps
  • Enables the flexible 100G+ transport era
  • Comprehensive Ethernet support: 10GE, 25GE, 50GE, 100GE, 200GE, 400GE and the new OIF FlexE 1.1 specification
  • New OTN 3.0 rates, enabling flexible (FlexO) and fractional 100G+ (OTUCn, OTUCn-m) transmission
  • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
  • Integrated packet test set enables remote troubleshooting and debug , driving down CAPEX and OPE
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Built for the cloud and 5G mobile transport era, DIGI-G5 is a Flexible Ethernet (FlexE)-enabled and Ethernet-optimized optical transport network (OTN) processor, offering a total interface bandwidth of up to 1.2 Tbps. Representing five generations of telecom and hyperscale cloud service provider-qualified Microchip's OTN processing innovation, DIGI-G5 delivers dense Ethernet and FlexE client, and “Beyond 100G” (B100G) OTN transport support for cloud‑scale 100G+ packet-optical, OTN switching, DWDM, and data center interconnect (DCI) optical networking applications. DIGI-G5 is complemented by Microchip's third-generation 100G OTN software development kit (SDK) that enables maximum development leverage across multiple line card designs, applications, and equipment platforms, reducing development costs while accelerating time-to-market.

Variants available with OTN encryption (PM6010) and without OTN encryption (PM6011).

Benefits for Service Providers & OEMs:
• Lowers CAPEX & OPEX of service provider 100G and B100G deployments
   • High-capacity hybrid packet/OTN switching and aggregation maximizes 100G and B100G wavelength utilization
   • Universal line card solution simplifies line card inventory management
• Supports emerging hyperscale data center interconnect transport requirements
   • Flexible, low latency, protocol agnostic Layer 1 OTN payload encryption
   • Flexible on-chip OTN switch & Interlaken interconnects enable design of compact, scalable, ‘rack-and-stack’ data center interconnect WAN transport platforms
• Supports transition to transport SDN-based network architectures
   • Flexible hybrid packet/OTN mapping, aggregation & switching enables virtualization of 100G and B100G optical infrastructure
   • 3rd-generation G.HAO ODUflex(GFP) support, enabling ‘Bandwidth-on-Demand’ packet services
   • LLDP monitoring for Ethernet and FlexE clients, enabling WAN topology mapping in SDN applications
• Accelerates time-to-market & lowers development costs for OEMs
   • High-performance, field-proven 100G OTN-SDK built upon the DIGI family code base, allowing OEMs to reuse existing software investments
   • Field-proven API libraries and firmware minimizes deployment risk and lowers development costs
   • On-chip ARM processor offloads performance-intensive tasks from host CPU to deliver 1Tbps+ application performance
• Optimizes power, footprint and cost of line cards:
   • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
   • Connects directly to many off-the-shelf network processors and switch fabrics
   • Integrated PLLs & GCC processor reduces the need for auxiliary components
• Supports 2nd-generation AES-256 OTN encryption
   • Enables sub-wavelength ODUk encryption
   • Interoperable with Microchip's DIGI-G4 family

Applications:
• Core/Metro P-OTPs 1 Tbps+ Line Cards
• Metro Distributed OTN Switch Muxponder/Transponder/ADM
• High Capacity DCI Single Chip FlexPonders/Switchponders

Additional Features
  • High-capacity OTN processor with total interface bandwidth of up to 1.2Tbps
  • Enables the flexible 100G+ transport era
  • Comprehensive Ethernet support: 10GE, 25GE, 50GE, 100GE, 200GE, 400GE and the new OIF FlexE 1.1 specification
  • New OTN 3.0 rates, enabling flexible (FlexO) and fractional 100G+ (OTUCn, OTUCn-m) transmission
  • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
  • Integrated packet test set enables remote troubleshooting and debug , driving down CAPEX and OPE
  • Integrated security engine enabling end-to-end AES-256-based encryption and authentication
  • Integrated G.HAO bandwidth-on-demand processing for OTN switching networks
  • Innovative DIGI-Mesh-Connect architecture that enables compact, pay-as-you-grow OTN switching at lowest cost and power by eliminating the need for any external fabric devices
Parametrics
Name
Value
Max Bandwidth (Gbps)
1200
Line Rates
OTU2/OTU4/OTUCn
Client Interfaces
GbE/FC/OTUk/FlexO
Max SERDES Rates (Gbps)
56
ODUk Switching
Yes (ODU0+)
System Interfaces
Interlaken
RoHS
Yes
Description
DIGI-G5 OTN Processor (without encryption)
