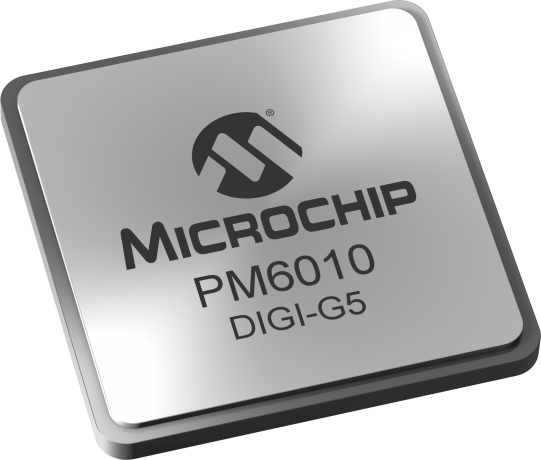

PM6010

DIGI-G5 OTN Processor Family

Status: In Production

Features:

  • High-capacity OTN processor with total interface bandwidth of up to 1.2Tbps
  • Enables the flexible 100G+ transport era
  • Comprehensive Ethernet support: 10GE, 25GE, 50GE, 100GE, 200GE, 400GE and the new OIF FlexE 1.1 specification
  • New OTN 3.0 rates, enabling flexible (FlexO) and fractional 100G+ (OTUCn, OTUCn-m) transmission
  • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
  • Integrated packet test set enables remote troubleshooting and debug , driving down CAPEX and OPE
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

Built for the cloud and 5G mobile transport era, DIGI-G5 is a Flexible Ethernet (FlexE)-enabled and Ethernet-optimized optical transport network (OTN) processor, offering a total interface bandwidth of up to 1.2 Tbps. Representing five generations of telecom and hyperscale cloud service provider-qualified Microchip's OTN processing innovation, DIGI-G5 delivers dense Ethernet and FlexE client, and “Beyond 100G” (B100G) OTN transport support for cloud‑scale 100G+ packet-optical, OTN switching, DWDM, and data center interconnect (DCI) optical networking applications. DIGI-G5 is complemented by Microchip's third-generation 100G OTN software development kit (SDK) that enables maximum development leverage across multiple line card designs, applications, and equipment platforms, reducing development costs while accelerating time-to-market.

Variants available with OTN encryption (PM6010) and without OTN encryption (PM6011).

Benefits for Service Providers & OEMs:
• Lowers CAPEX & OPEX of service provider 100G and B100G deployments
   • High-capacity hybrid packet/OTN switching and aggregation maximizes 100G and B100G wavelength utilization
   • Universal line card solution simplifies line card inventory management
• Supports emerging hyperscale data center interconnect transport requirements
   • Flexible, low latency, protocol agnostic Layer 1 OTN payload encryption
   • Flexible on-chip OTN switch & Interlaken interconnects enable design of compact, scalable, ‘rack-and-stack’ data center interconnect WAN transport platforms
• Supports transition to transport SDN-based network architectures
   • Flexible hybrid packet/OTN mapping, aggregation & switching enables virtualization of 100G and B100G optical infrastructure
   • 3rd-generation G.HAO ODUflex(GFP) support, enabling ‘Bandwidth-on-Demand’ packet services
   • LLDP monitoring for Ethernet and FlexE clients, enabling WAN topology mapping in SDN applications
• Accelerates time-to-market & lowers development costs for OEMs
   • High-performance, field-proven 100G OTN-SDK built upon the DIGI family code base, allowing OEMs to reuse existing software investments
   • Field-proven API libraries and firmware minimizes deployment risk and lowers development costs
   • On-chip ARM processor offloads performance-intensive tasks from host CPU to deliver 1Tbps+ application performance
• Optimizes power, footprint and cost of line cards:
   • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
   • Connects directly to many off-the-shelf network processors and switch fabrics
   • Integrated PLLs & GCC processor reduces the need for auxiliary components
• Supports 2nd-generation AES-256 OTN encryption
   • Enables sub-wavelength ODUk encryption
   • Interoperable with Microchip's DIGI-G4 family

Applications:
• Core/Metro P-OTPs 1 Tbps+ Line Cards
• Metro Distributed OTN Switch Muxponder/Transponder/ADM
• High Capacity DCI Single Chip FlexPonders/Switchponders

Additional Features
  • High-capacity OTN processor with total interface bandwidth of up to 1.2Tbps
  • Enables the flexible 100G+ transport era
  • Comprehensive Ethernet support: 10GE, 25GE, 50GE, 100GE, 200GE, 400GE and the new OIF FlexE 1.1 specification
  • New OTN 3.0 rates, enabling flexible (FlexO) and fractional 100G+ (OTUCn, OTUCn-m) transmission
  • 56G PAM-4 SerDes allows direct connection to QSFP-DD, OSFP, and coherent DSPs
  • Integrated packet test set enables remote troubleshooting and debug , driving down CAPEX and OPE
    • Integrated security engine enabling end-to-end AES-256-based encryption and authentication
    • Integrated G.HAO bandwidth-on-demand processing for OTN switching networks
    • Innovative DIGI-Mesh-Connect architecture that enables compact, pay-as-you-grow OTN switching at lowest cost and power by eliminating the need for any external fabric devices
Parametrics
Name
Value
Max Bandwidth (Gbps)
1200
Line Rates
OTU2/OTU4/OTUCn
Client Interfaces
GbE/FC/OTUk/FlexO
Max SERDES Rates (Gbps)
56
ODUk Switching
Yes (ODU0+)
System Interfaces
Interlaken
OTN Encyption
Yes
RoHS
Yes
Description
DIGI-G5 OTN Processor Family

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PM6010B1-FEI
34.11480
44.25000
1932
BBGA
45x45x4.00mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
