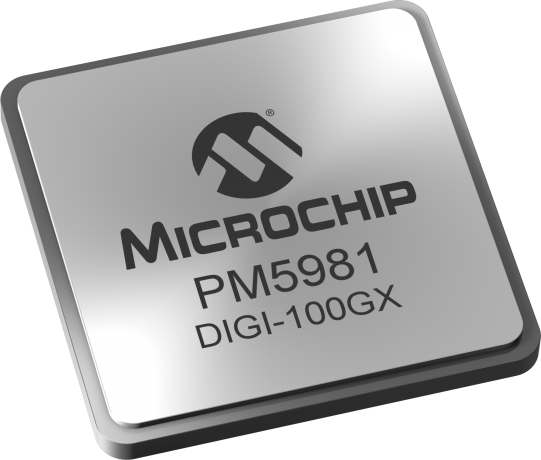

product primary image

PM5981

PM5981: DIGI-100GX OTN Procw/o

Status: In Production

Features:

  • Industry’s first sub-wavelength Layer 1 OTN encryption solution to secure the cloud
  • Industry’s first 25G granularity flexible OTN framer to DSP interface providing scalable line-rates to next-generation Coherent DSPs
  • Transport SDN-ready features, enabling OpenFlow extensions such as network element neighbor discovery
  • High-density 10G, 40G and 100G multi-service support, including Ethernet, Storage, IP/MPLS and SONET/SDH
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

The PM5981 DIGI-100GX is a member of Microchip's fourth-generation family of OTN processing solutions for next-generation OTN switching and packet-optical transport (POTP / P-OTN), WDM / ROADM, and hyperscale data center interconnect (DCI) equipment. Building on the innovations in Microchip's DIGI-120G, which is widely deployed in service provider and hyperscale data center WAN networks today, the DIGI-100GX is a high-density, multi-service 100G OTN processor that addresses the requirements of SDN-ready, encrypted optical transport infrastructure. Reusing Microchip's proven, service provider-qualified DIGI family OTN switching software development kit (SDK), DIGI-100GX can be leveraged across multiple applications and equipment platforms, providing OEMs with the lowest risk, fastest time-to-market and lowest cost of development.

Variants available with OTN encryption (PM5980) and without OTN encryption (PM5981).

Benefits for Service Providers & OEMs:
• Lowers CAPEX & OPEX of service provider 100G deployments
   • High-capacity hybrid packet/OTN switching & aggregation maximizes 100G wavelength utilization
   • Universal line card solution simplifies line card inventory management
• Supports emerging hyperscale data center interconnect transport requirements
   • Flexible, low latency, protocol agnostic AES-256 certified Layer 1 OTN payload encryption
   • Flexible on-chip OTN switch & Interlaken interconnects enable design of compact, scalable, ‘rack-and-stack’ data center      interconnect WAN transport platforms
• Supports transition to transport SDN-based network architectures
   • Flexible hybrid packet/OTN mapping, aggregation & switching enables virtualization of 100G optical infrastructure
   • Hitless, on-demand scaling of optical connections
   • Features to enable OpenFlow extensions such as network element neighbor discovery
• Accelerates time-to-market & lowers development costs for OEMs
   • High-performance, field-proven OTN-SDK built upon the DIGI family code base, allowing OEMs to reuse existing software investments
   • ‘Application-centric’ APIs reduce time-to-market by up to 6 months.
• Optimizes power, footprint and cost of line cards:
   • Integrated 100G gearbox for direct connect to CFP2, CFP4 and QSFP28 transceivers.
   • Connects directly to many off-the-shelf Network Processors & Switch Fabrics
   • Integrated PLLs & GCC processor reduces the need for auxiliary components

Additional Features
  • Industry’s first sub-wavelength Layer 1 OTN encryption solution to secure the cloud
  • Industry’s first 25G granularity flexible OTN framer to DSP interface providing scalable line-rates to next-generation Coherent DSPs
  • Transport SDN-ready features, enabling OpenFlow extensions such as network element neighbor discovery
  • High-density 10G, 40G and 100G multi-service support, including Ethernet, Storage, IP/MPLS and SONET/SDH
Parametrics
Name
Value
Max Bandwidth (Gbps)
200
Line Rates
OTU2/OTU3/OTU4
Client Interfaces
GbE/FC/SDH/SONET/OTUk
Max SERDES Rates (Gbps)
28
ODUk Switching
Yes (ODU0+)
System Interfaces
Interlaken
RoHS
Yes
Description
DIGI-100GX OTN Processor (without encryption)

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PM5981B-FEI
34.11480
44.25000
1932
BBGA
45x45x4.00mm
SAC305
e1
PM5986A-FEI
34.11480
44.25000
1932
BBGA
45x45x4.00mm
SAC305
e1
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
