6 Output CMOS Buffer Automotive Grade 1

PLA133-67

AEC-Q100 qualified 125 C CMOS 1:6 Buffer

Status: In Production

Features:

  • Automotive AEC-Q100 Qualified
  • 1:6 LVCMOS Output Fanout Buffer from DC to150 MHz
  • Low Additive Phase Jitter of 60 fs RMS
  • Automotive Applications Grade 1 Compliant
  • Wide Temperature Range: –40°C to +125°C
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

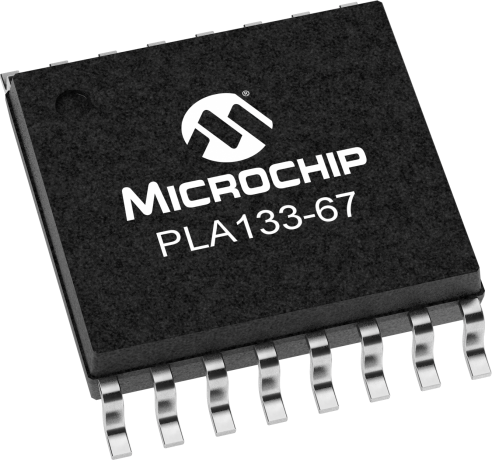

The PLA133-67 is an advanced fanout buffer designed for automotive and other high performance, low-power, small form factor applications. The PLA133-67 accepts a reference clock input from DC to 150 MHz and provides six outputs of the same frequency with ultra-low additive jitter. The device is AEC-Q100 qualified. The PLA133-67 is available in a TSSOP-16L package.

The PLA133-67 outputs can be disabled to a high impedance (tri-state) by pulling low the OE pin. When the OE pin is high, the outputs are enabled and follow the REF input signal. When the OE pin is left open, a pull-up resistor on the chip will default the OE pin to logic 1 so the outputs are enabled.

4-output PLA133-47 https://www.microchip.com/wwwproducts/en/PLA133-47 and 9 output PLA133-97 https://www.microchip.com/wwwproducts/en/PLA133-97 are also available.

Additional Features
  • Automotive AEC-Q100 Qualified
  • 1:6 LVCMOS Output Fanout Buffer from DC to150 MHz
  • Low Additive Phase Jitter of 60 fs RMS
  • 8 mA Output Drive Strength
  • Automotive Applications Grade 1 Compliant
  • Low Input-Output Delay
  • Output-Output Skew <250 ps
  • 2.5V to 3.3V, ±10% Operation
  • 1.8V ±10% Operation up to 67 MHz
  • Wide Temperature Range: –40°C to +125°C
  • Available in 16-Pin TSSOP Package
  • Automotive Applications:
    • ADAS Vision System
    • Infotainment and Dashboard
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:6
Input
LVCMOS
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.15
Max Prop Delay (ps)
9200
Icc (mA)
30
Max Within Device Skew (ps)
250
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Output Type
LVCMOS
Number Of Outputs
6

Documents

Jump to:
