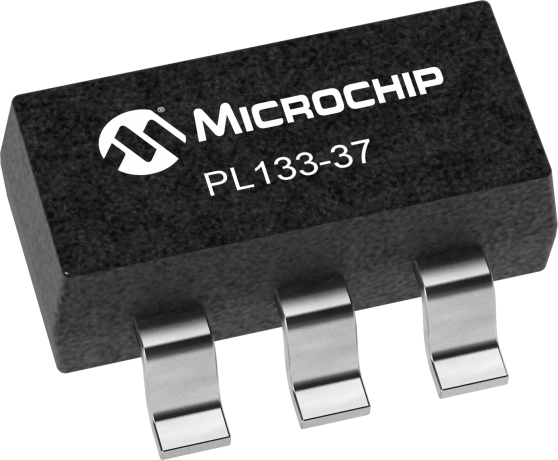

product primary image

PL133-37

Status: In Production

Features:

  • 3 LVCMOS Outputs
  • 12mA Output Drive Strength
  • Input/Output Frequency: Reference Clock: 1MHz to 150MHz
  • Supports LVCMOS or Sine Wave Input Clock
  • Very Low Jitter and Phase Noise
  • Low Current Consumption
  • Single 1.8V, 2.5V or 3.3V ±10% operation
  • 0°C to 70°C (Commercial)
  • -40°C to 85°C (Industrial)
  • Available in SOT23-6L GREEN/RoHS Compliant Packages
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PL133-37 is an advanced fanout buffer design for high performance, low-power, small form-factor applications. The PL133-37 accepts a LVCMOS or a Sine Wave reference clock input of 1MHz to 150MHz and produces three outputs of the same frequency. Reference clock inputs may be LVCMOS or sine-wave signals (the inputs are internally AC-coupled so no external components required). Offered in a small 3 x 3mm SOT23, the PL133-37 offers the best phase noise and jitter performance and lowest power con-consumption of any comparable IC.

Additional Features
    • 3 LVCMOS Outputs
    • 12mA Output Drive Strength
    • Input/Output Frequency: Reference Clock: 1MHz to 150MHz
    • Supports LVCMOS or Sine Wave Input Clock
    • Very Low Jitter and Phase Noise
    • Low Current Consumption
    • Single 1.8V, 2.5V or 3.3V ±10% operation
    • Operating Temperature Range:
      • 0°C to 70°C (Commercial)
      • -40°C to 85°C (Industrial)
    • Available in SOT23-6L GREEN/RoHS Compliant Packages
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:3 Fanout buffer, LVCMOS/Sine Wave input 1.8-3.3V
Input
LVCMOS/Sine Wave
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.15
Max Prop Delay (ps)
Icc (mA)
1
Max Within Device Skew (ps)
250
OE
False
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Voltage (V)
1.8/2.5/3.3
Output Type
LVCMOS
Input (MHz)
1-150
Number Of Outputs
3
Output Voltage
1.8/2.5/3.3

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL133-37TC
0.017000
0.047333
6
SOT-23
-
Matte Tin
e3
PL133-37TC-R
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
PL133-37TI
0.017000
0.047333
6
SOT-23
-
Matte Tin
e3
PL133-37TI-R
0.017000
0.046667
6
SOT-23
-
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
