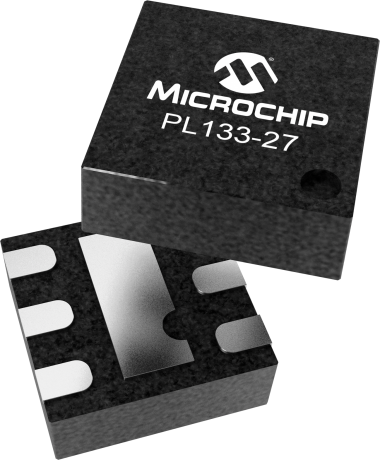

product primary image

PL133-27

Status: In Production

Features:

  • 2 LVCMOS Outputs
  • Input/Output Frequency: 1MHz to 150MHz
  • Supports LVCMOS or Sine Wave Input Clock
  • Extremely low additive Jitter
  • 8mA Output Drive Strength
  • Low Current Consumption
  • Single 1.8V, 2.5V or 3.3V ±10% operation
  • 0°C to 70°C (Commercial)
  • -40°C to 85°C (Industrial)
  • Available in DFN-6L GREEN/RoHS Compliant Packages
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PL133-27 is an advanced fanout buffer design for high performance, low-power, small form-factor applications. The PL133-27 accepts a reference clock input of 1MHz to 150MHz and produces two outputs of the same frequency. Reference clock inputs may be LVCMOS or sine-wave signals (the inputs are internally AC-coupled). PL133-27 is designed to fit in a small 2 x 1.3 x 0.6mm DFN package, and offers the best phase noise and jitter performance and lowest power consumption of any comparable IC.

Additional Features
    • 2 LVCMOS Outputs
    • Input/Output Frequency: 1MHz to 150MHz
    • Supports LVCMOS or Sine Wave Input Clock
    • Extremely low additive Jitter
    • 8mA Output Drive Strength
    • Low Current Consumption
    • Single 1.8V, 2.5V or 3.3V ±10% operation
    • Operating Temperature Range:
      • 0°C to 70°C (Commercial)
      • -40°C to 85°C (Industrial)
    • Available in DFN-6L GREEN/RoHS Compliant Packages
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:2 Fanout buffer, LVCMOS/Sine Wave input 1.8-3.3V
Input
LVCMOS/Sine Wave
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.15
Max Prop Delay (ps)
Icc (mA)
1
Max Within Device Skew (ps)
500
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Voltage (V)
1.8/2.5/3.3
Output Type
LVCMOS
Input (MHz)
1-150
Number Of Outputs
2
Output Voltage
1.8/2.5/3.3

Documents

Jump to:

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL133-27GC
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL133-27GC-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL133-27GI
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL133-27GI-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
