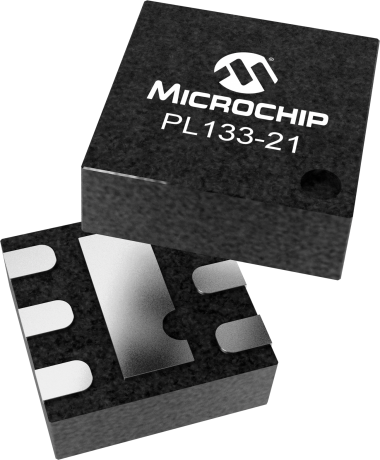

product primary image

PL133-21

Status: In Production

Features:

  • 2 LVCMOS Outputs
  • Input/Output Frequency: 1MHz to 150MHz
  • Supports LVCMOS or Sine Wave Input Clock
  • Output Enable (OE) only controls CLK0
  • CLK1 is always on
  • Extremely low additive Jitter
  • 8 mA Output Drive Strength
  • Low Current Consumption
  • Single 1.8V, 2.5V, or 3.3V, ±10% Power Supply
  • Operating Temperature Range: 0°C to 70°C (Commercial), 0 -40°C to 85°C (Industrial)
  • Available in DFN-6L GREEN/RoHS Compliant Packages
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PL133-21 is an advanced fanout buffer design for high performance, low-power, small form-factor applications.  The PL133-21 accepts a reference clock input of 1MHz to 150MHz and produces two outputs of the same frequency.  Reference clock inputs may be LVCMOS or sine-wave signals (the inputs are internally AC-coupled).  PL133-21 is designed to fit in a small 2 x 1.3 x 0.6mm DFN package, and offers the best phase noise and jitter performance and lowest power consumption of any comparable IC.

Additional Features
    • 2 LVCMOS Outputs

    • Input/Output Frequency: 1MHz to 150MHz

    • Supports LVCMOS or Sine Wave Input Clock

    • Output Enable (OE) only controls CLK0

    • CLK1 is always on

    • Extremely low additive Jitter

    • 8 mA Output Drive Strength

    • Low Current Consumption

    • Single 1.8V, 2.5V, or 3.3V, ±10% Power Supply

    • Operating Temperature Range: 0°C to 70°C (Commercial), 0 -40°C to 85°C (Industrial)

    • Available in DFN-6L GREEN/RoHS Compliant Packages
Parametrics
Name
Value
Product Type
Fanout & Buffer and Drivers
Description
1:2 Fanout buffer, LVCMOS/Sine Wave input 1.8-3.3V
Input
LVCMOS/Sine Wave
Output
LVCMOS
Supply Voltage
1.8/2.5/3.3
Max Freq (GHz)
0.15
Max Prop Delay (ps)
Icc (mA)
1
Max Within Device Skew (ps)
500
OE
True
RPE
False
FSI
False
Input Mux
False
Input EQ
False
Voltage (V)
1.8/2.5/3.3
Output Type
LVCMOS
Input (MHz)
1-150
Number Of Outputs
2
Output Voltage
1.8/2.5/3.3

Documentation data is currently unavailable.


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PL133-21GC
0.005700
2.500000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
PL133-21GC-R
0.005700
0.100000
6
UDFN
1.3x2.0x0.6mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
