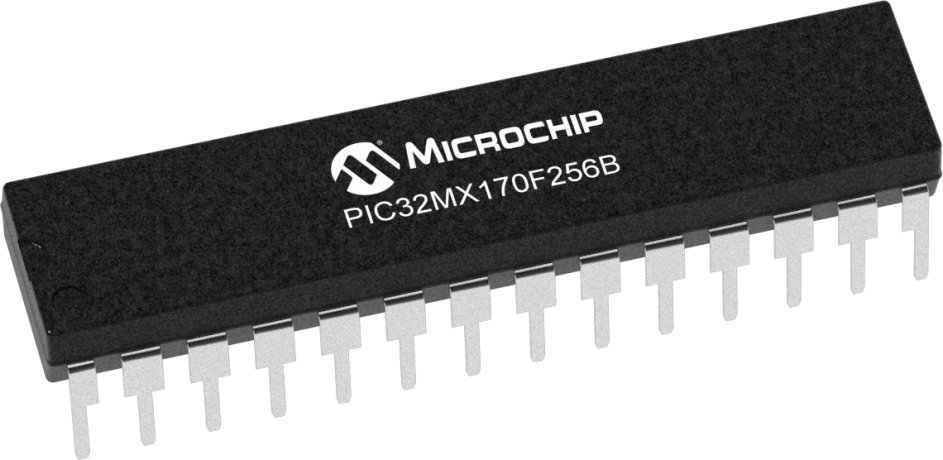

PIC32MX170F256B

Status: In Production

Features:

Up to 50 MHz/83 DMIPS, 32-bit RISC CPU with 0.5 mA/MHz current consumption (Typical)
Two I2S/SPI modules for Codec and serial communications
Peripheral Pin Select (PPS) functionality
Parallel Master Port (PMP) for graphics interfaces
Supports mTouchTM Capacitive touch buttons and sliders
Provides high-resolution time measurement (1 ns)
On-chip temperature measurement capability
Temperature Range - 40°C to 105°C
Operating voltage range of 2.3V to 3.6V
256KB Flash memory (plus an additional 3 KB of Boot Flash)
64K SRAM memory
1.65 DMIPS/MHz (Dhrystone 2.1) performance
MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
Pin-compatible with most Microchip 16-bit devices
Multiple power management modes
Configurable WDT with on-chip Low-Power RC oscillator for reliable operation
Peripheral Pin Select (PPS) functionality
Up to 4 channels of hardware DMA with automatic data size detection
Two UART and I2C™ modules
Separate PLLs for CPU and USB clocks
Hardware Real-Time Clock and Calendar (RTCC)
Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
Five Capture inputs and Five Compare/PWM outputs
Data communication: I2S, LJ, RJ, DSP modes
Control interface: SPI and I2C™
Generation of fractional clock frequencies
Can be synchronized with USB clock
Can be tuned in run-time
Up to 13-channel, 10-bit ADC
Three Analog Comparators
Charge Time Measurement Unit (CTMU)
Four programming and debugging Interfaces
IEEE Standard 1149.2 compatible (JTAG) boundary scan

Overview

Documents

Development Environment

Similar Devices

RoHS Information

Add To Cart

Summary

Additional Features

Key Features

Up to 50 MHz/83 DMIPS, 32-bit RISC CPU with 0.5 mA/MHz current consumption (Typical)
Two I2S/SPI modules for Codec and serial communications
Peripheral Pin Select (PPS) functionality
Parallel Master Port (PMP) for graphics interfaces
Charge Time Measurement Unit (CTMU):
- Supports mTouchTM Capacitive touch buttons and sliders
- Provides high-resolution time measurement (1 ns)
- On-chip temperature measurement capability
Temperature Range - 40°C to 105°C

Microcontroller Features

Operating voltage range of 2.3V to 3.6V
256KB Flash memory (plus an additional 3 KB of Boot Flash)
64K SRAM memory
1.65 DMIPS/MHz (Dhrystone 2.1) performance
MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
Pin-compatible with most Microchip 16-bit devices
Multiple power management modes
Configurable WDT with on-chip Low-Power RC oscillator for reliable operation

Peripheral Features

Peripheral Pin Select (PPS) functionality
Up to 4 channels of hardware DMA with automatic data size detection
Two UART and I2C™ modules
Separate PLLs for CPU and USB clocks
Hardware Real-Time Clock and Calendar (RTCC)
Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
Five Capture inputs and Five Compare/PWM outputs

Audio Interface Features

Data communication: I2S, LJ, RJ, DSP modes
Control interface: SPI and I2C™
Master clock:
- Generation of fractional clock frequencies
- Can be synchronized with USB clock
- Can be tuned in run-time

Analog Features

Up to 13-channel, 10-bit ADC
Three Analog Comparators
Charge Time Measurement Unit (CTMU)

Debug Features

Four programming and debugging Interfaces
IEEE Standard 1149.2 compatible (JTAG) boundary scan

Works with only MPLAB XC32 v1.32 & up.

Parametrics

Part Family

PIC32MX1xx

Max CPU Speed MHz

Program Memory Size (KB)

256

SRAM (KB)

Auxiliary Flash (KB)

Temperature Range (C)

-40 to 105

Operating Voltage Range (V)

2.3 to 3.6

Direct Memory Access Channels

SPI

I2C

CODEC Interface (I2S,AC97)

Yes

Peripheral Pin Select / Pin Muxing

Yes

CTMU test

Yes

ADC Input

Max ADC Resolution (Bits)

Max ADC Sampling Rate (ksps)

1000

Input Capture

Standalone Output Compare/Standard PWM

Max 16-bit Digital Timers

Parallel Port

PMP

Number of Comparators

Internal Oscillator

8 MHz, 32 kHz

Hardware RTCC/RTC

Yes

Max I/O Pins

Pincount

Development Environment

Integrated Development Environments
Compilers
Software & Configurators
Emulators & Debuggers
Programmers
Software Libraries
Code Examples

Integrated Development Environments

MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More

Compilers

MPLAB XC32 Compiler ( MPLAB-XC32 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital Signal...

Learn More

Software & Configurators

MPLAB® Harmony v3 ( MPLAB Harmony v3 )

MPLAB^® Harmony v3 is a fully integrated embedded software development framework that provides flexible and inter-operable software modules to simplify the development of value-added features for 32-bit MCUs and MPUs. It includes the MPLAB Harmony Configurator (MHC) tool, an easy-to-use tool with a GUI that simplifies device setup, library selection, configuration and...

Learn More

Emulators & Debuggers

MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor, the PICkit™ 3.

The MPLAB PICkit 4 now has Programmer-to-Go functionality for 8-bit, 16-bit and 32-bit PIC MCUs and dsPICs and also SAM MCU devices . The firmware update comes with MPLAB X IDE v5.30. AVR is expected soon!

The MPLAB® PICkit™ 4 In-Circuit

...

Learn More

Add To Cart

MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB^® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC^® and SAM Microcontrollers (MCUs), dsPIC^® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More

Add To Cart

MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

Our most affordable debugger has power to impress.

The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a

...

Learn More

Add To Cart

J-32 Debug Probe ( DV164232 )

The J-32 Debug Probe Debugger/Programmer provides affordable, fast and easy debugging and programming for Microchip’s PIC32 and SAM MCU and MPU products. Plus, SEGGER offers free, stand-alone applications to extend J-32 Debug Probe functionality:

J-32 Debug Probe is fully integrated into Microchip’s powerful MPLAB® X Integrated Development Environment and

...

Learn More

Add To Cart

Programmers

MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Fast programming, increased functionality, at the same price as its predecessor, the PICkit™ 3.

The MPLAB® PICkit™ 4 In-Circuit

...

Learn More

Add To Cart

MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

...

Learn More

Add To Cart

MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

Socket: AC164336 PartNo: PIC32MX170F256B (28ML)
Socket: AC164337 PartNo: PIC32MX170F256B (28SP)
Socket: AC164339 PartNo: PIC32MX170F256B (28SO)
Socket: AC164338 PartNo: PIC32MX170F256B (28SS)

Learn More

Add To Cart

MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

...

Learn More

Add To Cart

J-32 Debug Probe ( DV164232 )

...

Learn More

Add To Cart

Software Libraries

ADPCM and Speex (Audio) Library for PIC32 MCUs

AAC Decoder Libraries for PIC32MX for MLA based

Advanced Audio Coding (AAC) is a standardized lossy compression technique used for encoding digital audio...

Learn More

Microchip Certified Class B Safety Software Library for 16 bit & PIC32 MCUs

Learn More

PIC32 Peripheral Library

Summary

The PIC32 Peripheral Library provides a set of functions for setting up and controlling the operation of all the peripheral modules available in the PIC32 devices. The...

Learn More

Smart Card ISO-7816 Library for PIC18F, PIC24/dsPIC and PIC32 Microcontrollers

Microchip’s smart card library supports PIC18, PIC24, dsPIC and PIC32 microcontrollers; it provides the

...

Learn More

Code Examples

Bluetooth Stack Library Demonstrations in Harmony

Class B application Demos in Harmony

Crypto application Demos in Harmony

File System application Demos in Harmony

Graphics application Demos in Harmony

PIC32 VGA Camera Sensor Demo

RTOS application Demos in Harmony

USB application Demos in Harmony

Similar Devices

PIC32MX110F016B

4,096

$1.40

PIC32MX110F016C

4,096

$1.54

PIC32MX110F016D

4,096

$1.64

PIC32MX120F032B

4,096

$1.60

PIC32MX120F032C

4,096

$1.74

PIC32MX120F032D

8,192

$1.83

PIC32MX120F064H

8,192

$2.16

PIC32MX130F064B

16,384

$1.81

PIC32MX130F064C

16,384

$1.97

PIC32MX130F064D

16,384

$2.02

PIC32MX130F128H

128

16,384

$2.20

PIC32MX130F128L

100

128

16,384

$2.65

PIC32MX130F256B

256

16,384

$2.00

PIC32MX130F256D

256

16,384

$2.18

PIC32MX150F128B

128

32,768

$2.31

PIC32MX150F128C

128

32,768

$2.45

PIC32MX150F128D

128

65,536

$2.52

PIC32MX150F256H

256

32,768

$2.56

PIC32MX150F256L

100

256

32,768

$3.01

PIC32MX154F128B

128

32,768

$2.77

Low Power

PIC32MX154F128D

128

32,768

$2.95

Low Power

PIC32MX170F256B

256

65,536

$2.55

PIC32MX170F256D

256

65,536

$2.76

PIC32MX170F512H

512

65,536

$3.51

PIC32MX170F512L

100

512

65,536

$3.96

PIC32MX174F256B

256

65,536

$2.94

Low Power

PIC32MX174F256D

256

65,536

$3.12

Low Power

RoHS Information

PIC32MX170F256BT-I/ML

0.101600

0.332500

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256BT-V/ML

0.101600

0.332500

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256B-I/ML

0.101600

0.163934

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256B-V/ML

0.101600

0.163934

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256BT-50I/ML

0.101600

0.332500

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256B-50I/ML

0.101600

0.163934

QFN

6x6x0.9mm

Matte Tin

PIC32MX170F256B-50I/SS

0.229200

0.489362

SSOP

.209in

Matte Tin

PIC32MX170F256B-I/SS

0.229200

0.489362

SSOP

.209in

Matte Tin

PIC32MX170F256BT-50I/SS

0.229200

0.333333

SSOP

.209in

Matte Tin

PIC32MX170F256BT-V/SS

0.229200

0.333333

SSOP

.209in

Matte Tin

PIC32MX170F256B-V/SS

0.229200

0.489362

SSOP

.209in

Matte Tin

PIC32MX170F256BT-I/SS

0.229200

0.333333

SSOP

.209in

Matte Tin

PIC32MX170F256B-I/SO

0.770400

1.370370

SOIC

.300in

Matte Tin

PIC32MX170F256BT-I/SO

0.770400

1.152500

SOIC

.300in

Matte Tin

PIC32MX170F256BT-V/SO

0.770400

1.152500

SOIC

.300in

Matte Tin

PIC32MX170F256B-V/SO

0.770400

1.370370

SOIC

.300in

Matte Tin

PIC32MX170F256BT-50I/SO

0.770400

1.152500

SOIC

.300in

Matte Tin

PIC32MX170F256B-50I/SO

0.770400

1.370370

SOIC

.300in

Matte Tin

PIC32MX170F256B-50I/SP

2.087500

3.733333

SPDIP

.300in

Matte Tin

PIC32MX170F256B-I/SP

2.087500

3.733333

SPDIP

.300in

Matte Tin

PIC32MX170F256B-V/SP

2.087500

3.733333

SPDIP

.300in

Matte Tin

To see a complete listing of RoHS data for this device, please Click here
