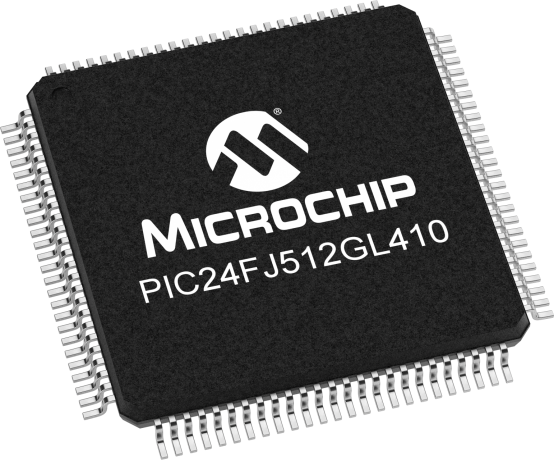

PIC24FJ512GL410

Low Power MCU with Integrated LCD

Status: In Production

Features:

Segmented LCD Controller with Animation
2.0V to 3.6V, -40°C to 125°C, AEC Q100 Grade 1 qualified, up to 16 MIPS operation
Ultra-low-power operation with sleep current down to nA with full RAM retention

Overview

Documents

Development Environment

Similar Devices

RoHS Information

Add to Cart

Summary

The PIC24FJ ‘GU4/GL4’ family offers up to 512KB of Dual Partition Flash supporting real-time Over-The-Air (OTA) updates and EEPROM Emulation. Along with a number of core independent peripherals (CIPs), it includes a full speed USB and a segmented LCD controller with animation support. With high memory and sleep current down to a few hundreds of nA while retaining the complete RAM content, this family is perfect for IoT, Industrial, Consumer and Medical applications.

Supported in the MPLAB® Code Configurator (MCC) tool, the development time gets significantly reduced by allowing you to configure the devices and libraries with just a few clicks. To address the evolving focus on safety and security, these MCUs offer hardware safety features and secure protection schemes, simplifying design of smart, safe, secure and connected applications. These MCUs feature protection schemes such as Flash OTP by ICSP™ Write Inhibit which allows the entire Flash to be configured as One-Time-Programmable (OTP) memory and CodeGuard™ Flash Security which facilitates to segment the memory and implement access restrictions. These features together with our CryptoAuthentication™ chips enable you to implement security in your applications. Offering an extended operating temperature of up to 125°C with AEC Q100 Grade 1 qualification, this family is also well suited for Automotive and Industrial applications. A range of hardware safety features on this family facilitates your application’s compliance with safety requirements. With a high-level of analog integration, this family simplifies sensor interfacing and analog measurement, while reducing the overall system BoM cost.

Additional Features

Segmented LCD Controller with Animation

64 Segments and 8 Commons supporting up to 480 Pixels
Core independent autonomous animation: Alternating dual display, blinking and blanking
LCD Charge Pump for contrast management in battery-powered applications
External bias option for reducing power consumption
Operation in power-saving modes

Core and Operating Conditions

2.0V to 3.6V, -40°C to 125°C, AEC Q100 Grade 1 qualified, up to 16 MIPS operation
Single-cycle instruction execution
16 x 16 Hardware Multiply, and 32-bit x 16-bit Hardware Divider
C compiler optimized instruction set system

eXtreme Low Power

Ultra-low-power operation with sleep current down to nA with full RAM retention
A range of power-saving modes to reduce current consumption, while balancing performance: PMD bits, DOZE, Idle, Sleep and Retention Sleep modes
A range of Core Independent Peripherals (CIPs) that operate in power saving modes, while off-loading the Central Processing Unit (CPU)

Secure Protection Features

Flash ‘One Time Programming’ (OTP) by ICSP™ Write Inhibit that offers an ability to disable Flash erase/write/debug operations
CodeGuard™ Flash protection to manage memory partitions and access restrictions
120-bit Unique Device ID, 256 bytes User OTP and the above protection schemes make an ideal combination of complementary features to implement security together with the CryptoAuthentication™ devices in a secure application

Hardware Safety Features

Flash with Error Correction Code (ECC) and Fault Injection for memory integrity check (Single error correction and Double error detection)
Dead-Man Timer (DMT) clocked by instruction fetches for monitoring the health of software
Windowed WatchDog Timer (WWDT) for system supervision
CodeGuard™ Flash protection for memory partition and access restriction
Fail-Safe Clock Monitor (FSCM) for clock fault management
Enhanced Programmable Cyclic Redundancy Check (CRC), Programmable High-Low Voltage Detect (HLVD), Brown-out Reset (BOR) and Power-on Reset (POR)
Class B Safety Library, IEC 60730

Advanced Integrated Analog

Up to 24-Channel, 400Ksps, 10/12-Bit Analog-to-Digital Converter (ADC)
Low-voltage boost for input
Bandgap reference input feature
Core Independent windowed threshold compare feature
Auto-scan feature
Operation in power-saving modes
Three Analog Comparators with input multiplexing and programmable reference voltage generators
1 Msps 10-bit Digital-to-Analog Converter (DAC) with Buffered Output

Timer/Counters/Output Compare/Input Capture/Pulse Width Modulation

Eight MCCP modules, each with a Dedicated 16/32-Bit Timer
Three 6-output MCCP modules
Five 2-output MCCP modules
A total of up to 21x 16-bit timers or 10x 32-bit dedicated timer/counters
Hardware Real-Time Clock Calendar (RTCC) with Timestamping

Key Core Independent Peripherals

4x Configurable Logic Cells (CLCs)
8x Multiple Capture Compare PWMs (MCCPs)
Segmented LCD controller with Core Independent Animation, up to 480 pixels (8 commons x 64 segments)
ADC controller with threshold compare and automatic triggers
Direct Memory Access (DMA) with 6 channels, supporting UART, SPI, ADC, and more

Communication Interfaces

6x UARTs supporting LIN/J2602 and IrDA®
4x SPI/I2S, up to 24 MHz operation
3x I2C Master and Slave w/Address Masking, PMBus™ and IPMI support

Clock Management

On-chip 8 MHz Fast RC (FRC), and 32 kHz Low-Power RC (LPRC) and Secondary (SOSC) oscillators
Programmable PLL with external oscillator clock sources and Reference Clock Output (REFO)
Fail-Safe Clock Monitor (FSCM)
Power-up Timer (PWRT) and Oscillator Start-up Timer (OST) supporting two-speed start-up

Special Features and Debugger Development Support

MPLAB Code Configurator (MCC) support
Peripheral Pin Select (PPS) for flexible pin mapping
Configurable interrupt-on change on all IOs
In-Circuit Serial Programming™ (ICSP™) and In-Circuit Emulation (ICE) via 2-pins
JTAG Boundary Scan Support

Parametrics

Architecture

16-bit

Max CPU Speed (MHz)

CPU Speed (MIPS/DMIPS)

Program Memory Size (KB)

512

Error Correction Code Program Flash

Yes

SRAM (KB)

Direct Memory Access Channels

Temperature Range (C)

-40 to 125

Operating Voltage Range (V)

2 to 3.6

Pin Count

100

Low Power

Yes

Comparators

Analog Peripherals

1-A/D 24x12-bit @ 400(ksps) 1-D/A 1x10-bit

UART

SPI

I2C

Timers

21 x 16-bit 10 x 32-bit

Hardware RTCC/RTC

Yes

Input Capture

Max PWM outputs (including complementary)

Number of PWM Time Bases

Output Compare Channels

Class B Hardware

Yes

Segmented LCD

480

Graphics Controller/GPU

Yes

Configurable Cell Logic

Peripheral Pin Select / Pin Muxing

Yes

Supported in MPLAB Code Configurator

Yes

Development Environment

Integrated Development Environments
Compilers
Software & Configurators
Emulators & Debuggers
Production Programmers
Demo & Evaluation Boards
Software Libraries

Integrated Development Environments

MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...
