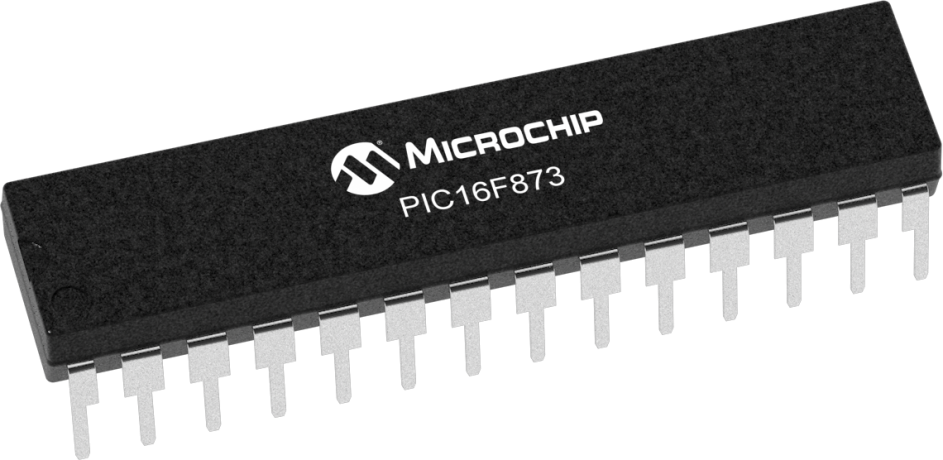

PIC16F873

Status: Not Recommended for new designs

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

A newer device is available. Please consider PIC16F883.

Please consider this device PIC16F883

Parametrics
Name
Value
Program Memory Type
Flash
Program Memory Size (KB)
7
CPU Speed (MIPS/DMIPS)
5
SRAM (B)
192
Data EEPROM/HEF (bytes)
128
Digital Communication Peripherals
1-SPI, 1-I2C1-MSSP(SPI/I2C)
Capture/Compare/PWM Peripherals
2 Input Capture, 2 CCP,
Timers
2 x 8-bit, 1 x 16-bit
ADC Input
5 ch, 10-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2 to 5.5
Pin Count
28

Documents

Jump to:

Data Sheets

Reference Manuals

Download All

95KB

Development Environment

  • Integrated Development Environments
  • Compilers
  • Emulators & Debuggers
  • Programmers
  • Code Examples
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Compilers
MPLAB-XC8
MPLAB XC8 Compiler ( MPLAB-XC8 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

  • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
  • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
...

Learn More
Emulators & Debuggers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

...

Learn More
Add To Cart
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
Add To Cart
Programmers
MPLAB PICkit 4 In-Circuit Debugger
MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

...

Learn More
Add To Cart
MPLAB ICD 4 In-Circuit Debugger
MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

...

Learn More
Add To Cart
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164302   PartNo: PIC16F873 (28SO)
  • Socket: AC164301   PartNo: PIC16F873 (28SP)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
28
7
192
$4.90

40
7
192
$4.58

28
14
368
$4.53

40
14
368
$4.64


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC16F873A-I/ML
0.101600
0.163934
28
QFN
6x6x0.9mm
Matte Tin
e3
PIC16F873AT-I/ML
0.101600
0.332500
28
QFN
6x6x0.9mm
Matte Tin
e3
PIC16F873A-E/SS
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
PIC16F873A-I/SS
0.229200
0.489362
28
SSOP
.209in
Matte Tin
e3
PIC16F873AT-I/SS
0.229200
0.333333
28
SSOP
.209in
Matte Tin
e3
PIC16F873-04/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-E/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-E/SOVAO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-I/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-I/SOG
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-I/SOVAO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873AT-I/SO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873AT-I/SOVAO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873-04I/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873-20/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873-20I/SO
0.770400
1.370370
28
SOIC
.300in
Matte Tin
e3
PIC16F873T-04/SO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873T-04I/SO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873T-04I/SOVAO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873T-20/SO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873T-20I/SO
0.770400
1.152500
28
SOIC
.300in
Matte Tin
e3
PIC16F873A-E/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
PIC16F873A-I/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
PIC16F873-04/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
PIC16F873-04I/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
PIC16F873-20/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
PIC16F873-20I/SP
2.087500
3.733333
28
SPDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
