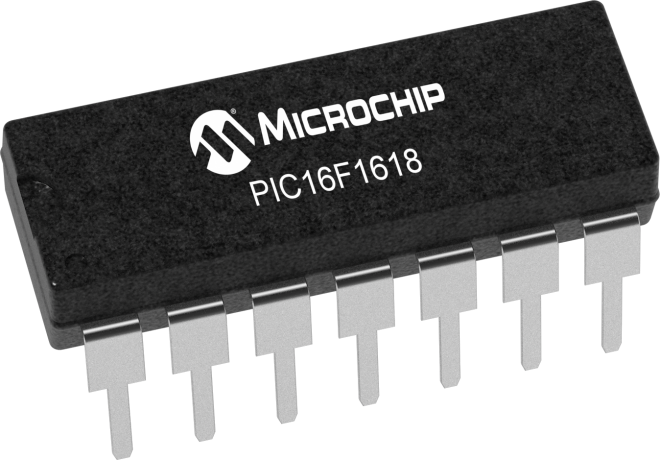

product primary image

PIC16F1618

Status: In Production

Features:

  • Flash Program Memory with self read/write capability
  • Enhanced Mid-Range Core, Internal 32MHz oscillator
  • 128 B of Non-volatile Data Storage
  • 2 x Analog Comparators
  • 2 x 10-bit PWM
  • 2 x Capture-Compare-PWM (CCP)
  • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
  • Complementary Waveform Generator (CWG):
  • Zero Cross Detection (ZCD)
  • CRC:  16-bit with DMA
  • Math Accelerator
  • 2 x 24-bit Signal Measurement Timer (SMT)
  • 3 x Hardware Limit Timer (HLT)
  • Angular Timer
  • Window Watchdog Timer (WWDT)
  • High Current Source/Sink: 2 x 100mA I/O
  • Power-On Reset (POR), Brown-Out Reset (BOR)
  • In Circuit Serial Programming (ICSP)
  • Wide Operating Voltage of PIC16F1618 variant (2.3V – 5.5V)
  • Enhanced Low-Voltage PIC16LF1618 variant (1.8V - 3.6V)
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

PIC16(L)F161X microcontrollers deliver on-chip features that are unique to the design for embedded control of small motors and general purpose applications in 8 / 14 / 20 pin count packages.   Features like 10-bit A/D, CCP, 24-bit SMT, Zero Cross Detection offer an excellent solution to variety of applications.  The product family also has a CRC + memory scan and Window WDT to support safety critical systems in home appliances, white goods and other end equipment.

Additional Features
    • Flash Program Memory with self read/write capability
    • Enhanced Mid-Range Core, Internal 32MHz oscillator
    • High Endurance Flash Memory (HEF)
      • 128 B of Non-volatile Data Storage
    • 2 x Analog Comparators
    • 2 x 10-bit PWM
    • 2 x Capture-Compare-PWM (CCP)
    • 8 x 10-bit Analog-to-Digital Converter (ADC) with voltage reference
    • Complementary Waveform Generator (CWG):
    • Zero Cross Detection (ZCD)
    • CRC:  16-bit with DMA
    • Math Accelerator
    • Timers:
      • 2 x 24-bit Signal Measurement Timer (SMT)
      • 3 x Hardware Limit Timer (HLT)
      • Angular Timer
      • Window Watchdog Timer (WWDT)
    • High Current Source/Sink: 2 x 100mA I/O
    • Power-On Reset (POR), Brown-Out Reset (BOR)
    • In Circuit Serial Programming (ICSP)
    • Wide Operating Voltage of PIC16F1618 variant (2.3V – 5.5V)
    • Enhanced Low-Voltage PIC16LF1618 variant (1.8V - 3.6V)
    Parametrics
    Name
    Value
    Program Memory Type
    Flash
    Program Memory Size (KB)
    7
    CPU Speed (MIPS/DMIPS)
    8
    SRAM (B)
    512
    Digital Communication Peripherals
    1-UART, 1-SPI, 1-I2C
    Capture/Compare/PWM Peripherals
    2 Input Capture, 2 CCP,
    Timers
    4 x 8-bit, 3 x 16-bit
    ADC Input
    12 ch, 10-bit
    Number of Comparators
    2
    Temperature Range (°C)
    -40 to 125
    Operating Voltage Range (V)
    1.8 to 5.5
    Pin Count
    20
    Low Power
    Yes

    Documents

    Jump to:

    Programming Specifications

    Application Notes

    Download All

    Code Examples

    White Papers

    Development Environment

    • Integrated Development Environments
    • Compilers
    • Emulators & Debuggers
    • Programmers
    • Demo & Evaluation Boards
    • Code Examples
    Integrated Development Environments
    MPLAB-X-IDE
    MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

    MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
    MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

    ...

    Learn More
    Compilers
    MPLAB-XC8
    MPLAB XC8 Compiler ( MPLAB-XC8 )

    Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

    • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
    • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
    ...

    Learn More
    Emulators & Debuggers
    MPLAB PICkit 4 In-Circuit Debugger
    MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

    Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

    ...

    Learn More
    Add To Cart
    MPLAB ICD 4 In-Circuit Debugger
    MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

    The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

    ...

    Learn More
    Add To Cart
    MPLAB(R) Snap In-Circuit Debugger
    MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

    Our most affordable debugger has power to impress.

    The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a

    ...

    Learn More
    Add To Cart
    Programmers
    MPLAB PICkit 4 In-Circuit Debugger
    MPLAB PICkit 4 In-Circuit Debugger ( PG164140 )

    Shipments of the MPLAB\\® PICkit 4 In-Circuit Debugger were temporarily suspended due to the coronavirus shutdown in China. We expect them to resume in the next month. If you require an MPLAB debugger/programmer immediately, we are offering 50% off an MPLAB ICD 4 In-Circuit Debugger. Use code ICD4PROMO at

    ...

    Learn More
    Add To Cart
    MPLAB ICD 4 In-Circuit Debugger
    MPLAB ICD 4 In-Circuit Debugger ( DV164045 )

    The MPLAB® ICD 4 In-Circuit Debugger/Programmer is Microchip’s fastest, cost-effective debugging and programming tool for PIC® and SAM Microcontrollers (MCUs), dsPIC® Digital Signal Controllers (DSCs), and CEC flash microcontrollers. This speed is provided by a SAME70 MCU with 300 MHz, 32-bit MCU with 2MB of RAM and a high-speed FPGA to yield

    ...

    Learn More
    Add To Cart
    MPLAB PM3 Universal Device Programmer
    MPLAB PM3 Universal Device Programmer ( DV007004 )

    The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

    • Socket: AC164301   PartNo: PIC16F1618 (20P)
    • Socket: AC164301   PartNo: PIC16F1618 (14P)
    • Socket: AC164307   PartNo: PIC16F1618 (20SS)
    • Socket: AC164326   PartNo: PIC16F1618 (20ML)
    • Socket: AC164302   PartNo: PIC16F1618 (20SO)
    Learn More
    Add To Cart
    MPLAB(R) Snap In-Circuit Debugger
    MPLAB(R) Snap In-Circuit Debugger ( PG164100 )

    Our most affordable debugger has power to impress.

    The MPLAB® Snap In-Circuit Debugger/Programmer allows affordable, fast and easy debugging and programming of PIC®, dsPIC®, AVR and SAM flash MCUs, using the powerful graphical user interface of MPLAB X Integrated Development Environment (IDE) version 5.05 or later. The MPLAB Snap can be connected to a computer using a

    ...

    Learn More
    Add To Cart
    Demo & Evaluation Boards
    PIC16(L)F1619 Emulation Extension Pak
    PIC16(L)F1619 Emulation Extension Pak ( AC244066 )

    The PIC16(L)F1619 Emulation Extension Pak (Part # AC244066) is a cost effective in-circuit emulator system designed to assist with the most complex code debugging jobs. This advanced development/debugging tool includes an Emulation Header board, Trace Cable, Trace Adapter Board, and gold header pins, and is intended to be paired with MPLAB REAL ICE. It is the first in a series of Emulation...

    Learn More
    Add To Cart
    Curiosity
    Curiosity ( DM164137 )

    Satisfy Your Curiosity
    Your next embedded design idea has a new home. Curiosity is a cost-effective, fully integrated 8-bit development platform targeted at first-time users, Makers, and those seeking a feature-rich rapid prototyping board. Designed from the ground-up to take full advantage of Microchip's MPLAB X development environment, Curiosity includes an integrated programmer/debugger,...

    Learn More
    Add To Cart
    Code Examples

    Similar Devices

    Product
    Pins
    Flash (KB)
    SRAM (B)
    Price 5K
    Notes
    8
    3.5
    256
    $0.56
    WWDT & CRC w/Scan
    14
    3.5
    256
    $0.60
    WWDT & CRC w/Scan
    14
    7
    512
    $0.70
    AngTMR & MathACC
    14
    14
    1,024
    $0.81
    AngTMR & MathACC
    20
    7
    512
    $0.74
    AngTMR & MathACC
    20
    14
    1,024
    $0.85
    AngTMR & MathACC

    RoHS Information

    Part Number
    Device Weight (g)
    Shipping Weight (Kg)
    Lead Count
    Package Type
    Package Width
    Solder Composition
    JEDEC Indicator
    RoHS
    China EFUP
    PIC16F1618-E/ML
    0.043100
    0.076923
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1618-I/ML
    0.043100
    0.076923
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1618T-I/ML
    0.043100
    0.212121
    20
    QFN
    4x4x0.9mm
    Matte Tin
    e3
    PIC16F1618-E/GZ
    0.020700
    0.065934
    20
    UQFN
    4x4x0.5mm
    Matte Tin
    e3
    PIC16F1618-I/GZ
    0.020700
    0.065934
    20
    UQFN
    4x4x0.5mm
    Matte Tin
    e3
    PIC16F1618T-I/GZ
    0.020700
    0.181818
    20
    UQFN
    4x4x0.5mm
    Matte Tin
    e3
    PIC16F1618-E/SS
    0.164200
    0.343284
    20
    SSOP
    .209in
    Matte Tin
    e3
    PIC16F1618-I/SS
    0.164200
    0.343284
    20
    SSOP
    .209in
    Matte Tin
    e3
    PIC16F1618T-I/SS
    0.164200
    0.416250
    20
    SSOP
    .209in
    Matte Tin
    e3
    PIC16F1618T-H/SSVAO
    0.164200
    0.416250
    20
    SSOP
    .209in
    Matte Tin
    e3
    PIC16F1618-E/SO
    0.542000
    0.973684
    20
    SOIC
    .300in
    Matte Tin
    e3
    PIC16F1618-I/SO
    0.542000
    0.973684
    20
    SOIC
    .300in
    Matte Tin
    e3
    PIC16F1618T-I/SO
    0.542000
    0.311875
    20
    SOIC
    .300in
    Matte Tin
    e3
    PIC16F1618-E/P
    1.512900
    2.833333
    20
    PDIP
    .300in
    Matte Tin
    e3
    PIC16F1618-I/P
    1.512900
    2.833333
    20
    PDIP
    .300in
    Matte Tin
    e3
    To see a complete listing of RoHS data for this device, please Click here
    Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
