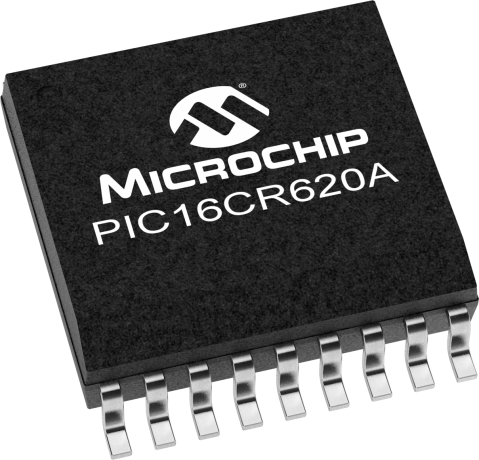

product primary image

PIC16CR620A

Status: Not Recommended for new designs

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Summary

This powerful (200 nanosecond instruction execution) yet easy-to-program (only 35 single word instructions) CMOS ROM-based 8-bit microcontroller packs Microchip's powerful PIC® architecture into an 18-pin package and is upwards compatible with the PIC16C5X and PIC12CXXX devices. The PIC16CR620A features 2 Comparators and a programmable voltage reference that make it ideal for entry level applications in automotive, industrial, appliances and consumer applications.

Please consider this device PIC16F818

Parametrics
Name
Value
Program Memory Type
ROM
Program Memory Size (KB)
0.875
CPU Speed (MIPS/DMIPS)
5
SRAM Bytes
96
Timers
1 x 8-bit
Number of Comparators
2
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
18

Documents

Jump to:
×

Data Sheet

PIC16C620/20A/21/21A/22/22A Datasheet
07/21/2003
3677KB

Errata

PIC16C62XA/CR62XA/CE62X Rev. A Silicon Errata
04/13/2004
287KB

Programming Specification

SQTP Specification for PIC16/17 MCUs
04/01/2003
59KB

Application Notes

Download All
AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs
01/05/2017
439KB
AN1310 - High-Speed Bootloader for PIC16 and PIC18 Devices
02/03/2010
482KB
AN721 - System Design Considerations for Implementing a ROM Microcontroller
11/15/1999
93KB

Brochures

8-bit PIC® Microcontroller Solutions
02/13/2018
3380KB

Code Examples

Assembly Code Templates (Absolute - no linker rqd.)
04/26/2006
370KB
Assembly Code Templates (Object - Linker Required)
04/26/2006
435KB

Product Line Card

Corporate Product Selector Guide
06/29/2018
3437KB

Reference Manual

Download All
10-bit A/D Converter (Mid-Range)
10/15/2004
100KB
8-Bit A/D Converter - PICmicro Mid-Range MCU Family
10/15/2004
87KB
Architecture - PICmicro Mid-Range MCU Family
10/15/2004
69KB
Basic Synchronous Serial Port (BSSP) - PICmicro Mid-Range MCU Family
10/15/2004
117KB
Comparator - PICmicro Mid-Range MCU Family
04/09/2003
62KB
Compare/Capture/PWM (CCP) - PICmicro Mid-Range MCU Family
04/09/2003
69KB
Cover Page and TOC - PICmicro Mid-Range MCU Family
10/15/2004
142KB
CPU and ALU - PICmicro Mid-Range MCU Family
10/15/2004
108KB
Data EEPROM - PICmicro Mid-Range MCU Family
10/15/2004
43KB
Device Configuration Bits - PICmicro Mid-Range MCU Family
10/15/2004
42KB
Electrical Specifications - PICmicro Mid-Range MCU Family
10/15/2004
594KB
I/O Ports
10/15/2004
95KB
In-Circuit Serial Programming - PICmicro Mid-Range MCU Family
10/15/2004
81KB
Instruction Set - PICmicro Mid-Range MCU Family
10/25/2004
482KB
Interrupts - PICmicro Mid-Range MCU Family
04/09/2003
68KB
Introduction - PICmicro Mid-Range MCU Family
10/15/2004
66KB
LCD - PICmicro Mid-Range MCU Family
10/15/2004
114KB
Memory Organization - PICmicro Mid-Range MCU Family
10/15/2004
71KB
Oscillator - PICmicro Mid-Range MCU Family
10/15/2004
110KB
Parallel Slave Port - PICmicro Mid-Range MCU Family
04/09/2003
40KB
Reset - PICmicro Mid-Range MCU Family
10/15/2004
84KB
Slope A/D - PICmicro Mid-Range MCU Family
10/15/2004
85KB
Synchronous Serial Port (SSP) - PICmicro Mid-Range MCU Family
10/15/2004
143KB
Timer0 - PICmicro Mid-Range MCU Family
10/15/2004
62KB
Timer2 - PICmicro Mid-Range MCU Family
04/09/2003
46KB
USART - PICmicro Mid-Range MCU Family
10/15/2004
129KB
Voltage Reference - PICmicro Mid-Range MCU Family
10/15/2004
46KB
Watchdog Timer and Sleep Mode - PICmicro Mid-Range MCU Family
10/15/2004
50KB

Brochures

MPLAB® X IDE Product Overview
07/11/2011
182KB

Tips and Tricks

PIC Microcontroller Compiled Tips 'n Tricks Guide
04/22/2009
5964KB

User Guides

MPLAB IDE PICSTART Plus User's Guide
10/22/2004
1401KB
MPLAB® PRO MATE® II User's Guide
10/02/2003
1571KB

Development tools data is currently unavailable.

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
PIC16C620
18
0.875
80
$2.68

PIC16C620A
18
0.875
96
$1.24

PIC16C621
18
1.75
80
$3.02

PIC16C621A
18
1.75
96
$1.40

PIC16C622
18
3.5
128
$3.47

PIC16C622A
18
3.5
128
$1.58

PIC16CE623
18
0.875
96
$1.78

PIC16CE624
18
1.75
96
$1.99

PIC16CE625
18
3.5
128
$2.27

PIC16CR620A
18
0.875
96



Rohs data is currently unavailable.
