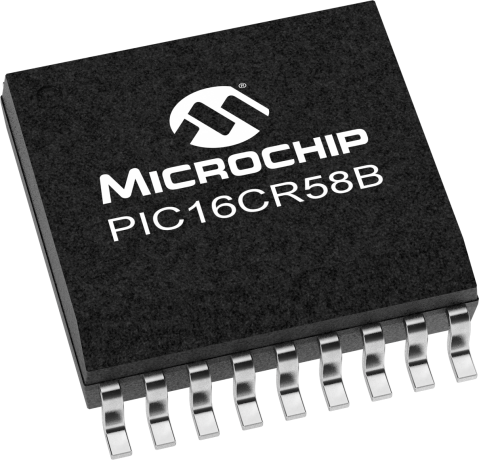

PIC16CR58B

Status: Not Recommended for new designs

Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Please consider this device PIC16F616

Parametrics
Name
Value
Program Memory Type
ROM
Program Memory Size (KB)
3
CPU Speed (MIPS/DMIPS)
5
SRAM (B)
73
Timers
1 x 8-bit
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
18

Documents

Jump to:
×

Data Sheets

PIC16C5X Datasheets

2443KB

Supporting Collateral

PIC16CR58A to PIC16CR58B Migration

30KB
PIC Microcontroller Compiled Tips 'n Tricks Guide

5964KB

Programming Specifications

PIC16C5XX EPROM/ROM Memory Programming/Verify Specification

281KB
SQTP Specification for PIC16/17 MCUs

59KB

Application Notes

AN721 - System Design Considerations for Implementing a ROM Microcontroller

93KB

Brochures

Corporate Product Selector Guide

3905KB
8-bit PIC® Microcontroller Solutions

3380KB
MPLAB® X IDE Product Overview

182KB

Code Examples

Assembly Code Templates (Absolute - no linker rqd.)

370KB
Assembly Code Templates (Object - Linker Required)

435KB

Legacy Collaterals

AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs

439KB
AN1066 XX - MiWi Wireless Networking Protocol Stack

604KB

Reference Manuals

Download All
8-Bit A/D Converter - PICmicro Mid-Range MCU Family

87KB
Architecture - PICmicro Mid-Range MCU Family

69KB
Basic Synchronous Serial Port (BSSP) - PICmicro Mid-Range MCU Family

117KB
CPU and ALU - PICmicro Mid-Range MCU Family

108KB
Data EEPROM - PICmicro Mid-Range MCU Family

43KB
Device Configuration Bits - PICmicro Mid-Range MCU Family

42KB
Electrical Specifications - PICmicro Mid-Range MCU Family

594KB
Introduction - PICmicro Mid-Range MCU Family

66KB
Slope A/D - PICmicro Mid-Range MCU Family

85KB
Timer0 - PICmicro Mid-Range MCU Family

62KB
Voltage Reference - PICmicro Mid-Range MCU Family

46KB
10-bit A/D Converter (Mid-Range)

100KB
Comparator - PICmicro Mid-Range MCU Family

62KB
Compare/Capture/PWM (CCP) - PICmicro Mid-Range MCU Family

69KB
Cover Page and TOC - PICmicro Mid-Range MCU Family

142KB
I/O Ports

95KB
In-Circuit Serial Programming - PICmicro Mid-Range MCU Family

81KB
Instruction Set - PICmicro Mid-Range MCU Family

482KB
Interrupts - PICmicro Mid-Range MCU Family

68KB
LCD - PICmicro Mid-Range MCU Family

114KB
Memory Organization - PICmicro Mid-Range MCU Family

71KB
Oscillator - PICmicro Mid-Range MCU Family

110KB
Parallel Slave Port - PICmicro Mid-Range MCU Family

40KB
Reset - PICmicro Mid-Range MCU Family

84KB
Synchronous Serial Port (SSP) - PICmicro Mid-Range MCU Family

143KB
Timer2 - PICmicro Mid-Range MCU Family

46KB
USART - PICmicro Mid-Range MCU Family

129KB
Watchdog Timer and Sleep Mode - PICmicro Mid-Range MCU Family

50KB

User Guides

MPLAB® Manual & Tutorial

1671KB
MPLAB® ICE 2000 Processor Module and Device Adapter Specification

599KB
MPASM™ Assembler

565KB
MPLAB IDE PICSTART Plus User's Guide

1401KB
MPLAB® PRO MATE® II User's Guide

1571KB
MPLIB™ Object Librarian and MPLINK™ Object Linker

1470KB
Transition Socket Specification

688KB

Development Environment

  • Integrated Development Environments
  • Compilers
  • Code Examples
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Compilers
MPLAB-XC8
MPLAB XC8 Compiler ( MPLAB-XC8 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

  • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
  • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
...

Learn More
Code Examples
Assembly Code Templates (Absolute - no linker rqd.)
Assembly Code Templates (Object - Linker Required)

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
PIC16C54
18
0.75
25
$2.33

PIC16C54A
18
0.75
25
$2.19

PIC16C54C
18
0.75
25
$1.27

PIC16C55
28
0.75
24
$2.69

PIC16C55A
28
0.75
24
$1.56

PIC16C56
18
1.5
25
$2.98

PIC16C56A
18
1.5
25
$1.44

PIC16C57
28
3
72
$3.64

PIC16C57C
28
3
72
$1.81

PIC16C58B
18
3
73
$1.52

PIC16CR54A
18
0.75
25


PIC16CR54C
18
0.75
25


PIC16CR56A
18
1.5
25


PIC16CR57C
28
3
72


PIC16CR58B
18
3
73



RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC16CR58BT-04/SO074
0.481000
1.000909
18
SOIC
.300in
Matte Tin
e3
PIC16CR58B-04I/P044
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16CR58B-04I/P075
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
