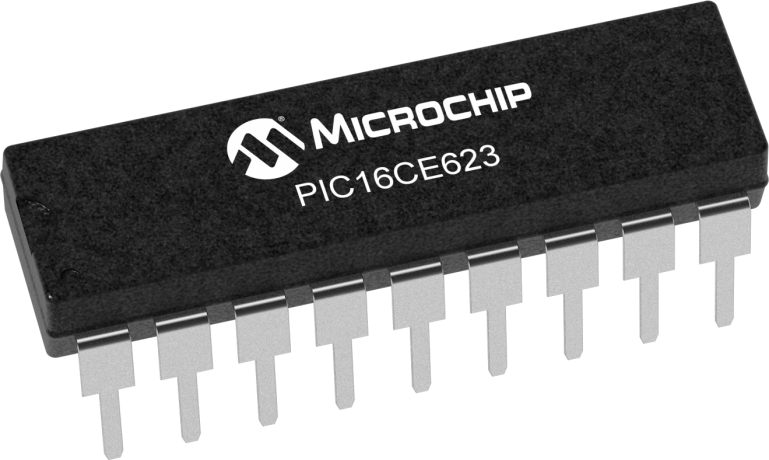

PIC16CE623

Status: Not Recommended for new designs

Features:

  • Programmable VREF 128 bytes of EEPROM data memory Max Speed: 30MHz
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Please consider this device PIC16F627A

Additional Features
Programmable VREF
128 bytes of EEPROM data memory
Max Speed: 30MHz
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
0.875
CPU Speed (MIPS/DMIPS)
7.5
SRAM Bytes
96
Data EEPROM/HEF (bytes)
128
Timers
1 x 8-bit
Number of Comparators
2
Temperature Range (°C)
-40 to 85
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
18

Documents

Jump to:

Data Sheet

02/05/2013
1576KB

Migration Guide

Brochures

Product Line Card

Reference Manual

Download All
10/15/2004
95KB

Brochures

Tips and Tricks

User Guides

Development Environment

  • Programmers
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164302   PartNo: PIC16CE623 (18SO)
  • Socket: AC164307   PartNo: PIC16CE623 (20SS)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
18
0.875
80
$2.68

18
0.875
96
$1.24

18
1.75
80
$3.02

18
1.75
96
$1.40

18
3.5
128
$3.47

18
3.5
128
$1.58

18
0.875
96
$1.78

18
1.75
96
$1.99

18
3.5
128
$2.27

18
0.875
96



RoHS Information

Part Number
Device Weight (g)
Shipping Weight (grams)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC16CE623-04/SO
0.481000
0.857143
18
SOIC
.300in
Matte Tin
e3
PIC16CE623-04I/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16CE623-04/SS
0.164200
0.343284
20
SSOP
.209in
Matte Tin
e3
PIC16CE623-04/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16CE623-04I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16CE623-20/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16CE623-20I/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
PIC16CE623-30/P
1.248000
2.200000
18
PDIP
.300in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
