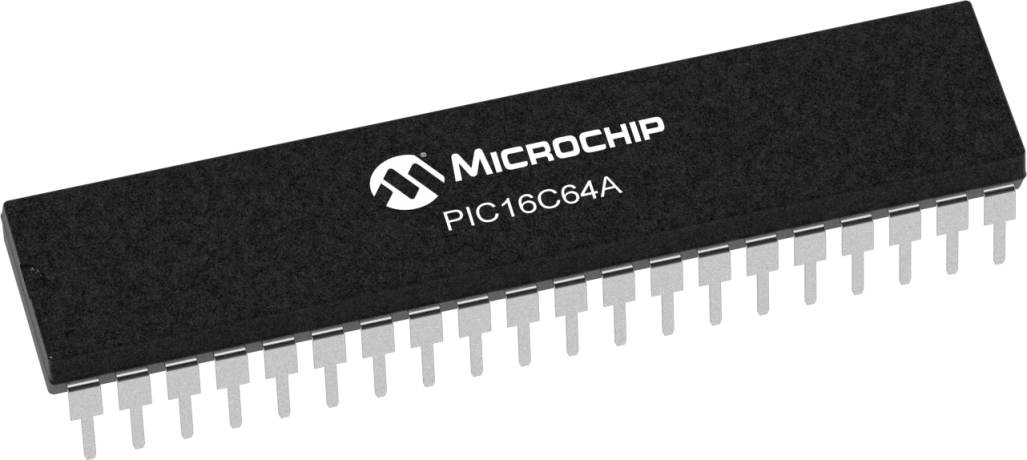

product primary image

PIC16C64A

Status: Not Recommended for new designs

Features:

  • A newer device is available. Please try PIC16F74.
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Please consider this device PIC16F74

Additional Features
A newer device is available. Please try PIC16F74.
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
3.5
CPU Speed (MIPS/DMIPS)
5
SRAM Bytes
128
Capture/Compare/PWM Peripherals
1 CCP,
Timers
2 x 8-bit, 1 x 16-bit
Temperature Range (C)
-40 to 85
Operating Voltage Range (V)
2.5 to 6
Pin Count
40

Documents

Jump to:

Data Sheet

02/05/2013
6121KB

Brochures

Product Line Card

Reference Manual

Download All
10/15/2004
95KB

Brochures

Tips and Tricks

User Guides

Development Environment

  • Programmers
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164309   PartNo: PIC16C64A (44L)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
28
3.5
128
$3.91

40
3.5
128
$4.38

40
7
192
$5.86


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC16C64A-10/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64AT-04I/PQ
0.485400
1.296667
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64AT-10/PQ
0.485400
1.296667
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-20I/PQ
0.485400
3.895833
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-04I/PQ
0.485400
3.895833
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-04/PQ
0.485400
3.895833
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-10/PQ
0.485400
3.895833
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-20/PQ
0.485400
3.895833
44
MQFP
10x10x2mm
Matte Tin
e3
PIC16C64A-10/PT
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
PIC16C64A-20/PT
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
PIC16C64A-20I/PT
0.273300
1.187500
44
TQFP
10x10x1mm
Matte Tin
e3
PIC16C64A-04/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-04E/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-04I/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-10I/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-20/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-20I/L
2.375500
3.703704
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64AT-04I/L
2.375500
3.400000
44
PLCC
16.6x16.6x4.4mm
Matte Tin
e3
PIC16C64A-04/P
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
PIC16C64A-04I/P
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
PIC16C64A-20/P
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
PIC16C64A-10/P
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
PIC16C64A-20I/P
6.500000
10.600000
40
PDIP
.600in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
