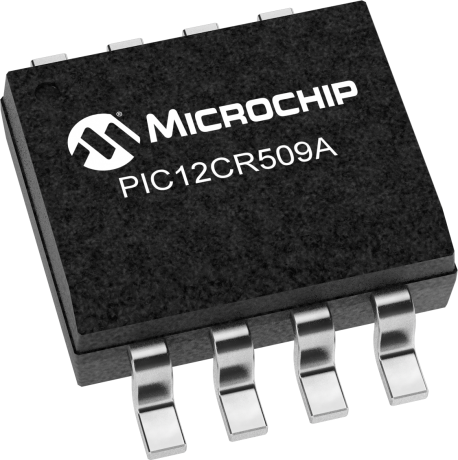

product primary image

PIC12CR509A

Status: Not Recommended for new designs

Features:

  • 6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4 MHz RC oscillator with programmable calibration, and Power-on Reset.
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Add To Cart

Device Overview

Summary

This powerful (1µsecond instruction execution) yet easy-to-program (only 33 single word instructions) CMOS ROM-based 8-bit microcontroller packs Microchip’s powerful PIC® architecture into an 8-pin package. Easily adapted for automotive, industrial, appliances and consumer entry-level product applications.

Please consider this device PIC12F509

Additional Features
6 I/O pins with 25mA source/sink per I/O, 4 oscillator selections including the internal 4 MHz RC oscillator with programmable calibration, and Power-on Reset.
Parametrics
Name
Value
Program Memory Type
ROM
Program Memory Size (KB)
1.5
CPU Speed (MIPS/DMIPS)
1
SRAM (B)
41
Timers
1 x 8-bit
Temperature Range (°C)
-40 to 125
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
8

Documents

Jump to:
×

Data Sheets

PIC12C5XX/CE5XX Datasheet

1604KB

Errata

PIC12C508A/C509A/CR509A Rev. B Silicon / Data Sheet Errata

364KB
PIC12C5XX Data Sheet Errata

67KB

Supporting Collateral

PIC12C50(X) to PIC12C50(X)A Migration

87KB
PIC Microcontroller Compiled Tips 'n Tricks Guide

5964KB

Application Notes

AN721 - System Design Considerations for Implementing a ROM Microcontroller

93KB

Brochures

Corporate Product Selector Guide

3905KB
8-bit PIC® Microcontroller Solutions

3380KB
MPLAB® X IDE Product Overview

182KB

Legacy Collaterals

AN1229 - Class B Safety Software Library for PIC MCUs and dsPIC DSCs

439KB

User Guides

MPLAB® Manual & Tutorial

1671KB
MPLAB® ICE 2000 Processor Module and Device Adapter Specification

599KB
Transition Socket Specification

688KB

Development Environment

  • Integrated Development Environments
  • Compilers
Integrated Development Environments
MPLAB-X-IDE
MPLAB X Integrated Development Environment (IDE) ( MPLAB-X-IDE )

MPLAB® X Integrated Development Environment (IDE) is an expandable, highly configurable software program that incorporates powerful tools to help you discover, configure, develop, debug and qualify embedded designs for most of Microchip’s microcontrollers, microprocessors and digital signal controllers.
MPLAB X IDE works seamlessly with the MPLAB development ecosystem of

...

Learn More
Compilers
MPLAB-XC8
MPLAB XC8 Compiler ( MPLAB-XC8 )

Available as free, unrestricted-use downloads, our award-winning MPLAB® XC C Compilers are comprehensive solutions for your project’s software development. Finding the right compiler to support your device is simple:

  • MPLAB XC8 supports all 8-bit PIC® and AVR® microcontrollers (MCUs)
  • MPLAB XC16 supports all 16-bit PIC MCUs and dsPIC® Digital
...

Learn More

Similar Devices

Product
Pins
Flash (KB)
SRAM (B)
Price 5K
Notes
PIC12C508
8
0.75
25
$1.34

PIC12C508A
8
0.75
25
$0.83

PIC12C509
8
1.5
41
$1.49

PIC12C509A
8
1.5
41
$0.90

PIC12CE518
8
0.75
25
$1.13

PIC12CE519
8
1.5
41
$1.16

PIC12CR509A
8
1.5
41


PIC16C505
14
1.5
72
$1.13


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP

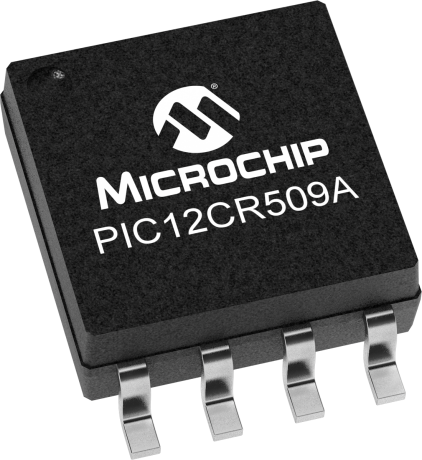

PIC12CR509AT-04I/SM021
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
