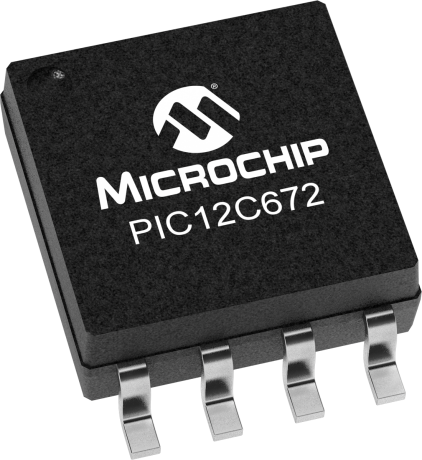

product primary image

PIC12C672

Status: Not Recommended for new designs

Features:

  • 25mA source/sink per I/O, 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-on Reset.
View More
Overview
Documents
Development Environment
Similar Devices
RoHS Information
Buy Now

Device Overview

Please consider this device PIC12F683

Additional Features
25mA source/sink per I/O, 4 oscillator selections including 4 MHz RC oscillator with programmable calibration and Power-on Reset.
Parametrics
Name
Value
Program Memory Type
OTP
Program Memory Size (KB)
3.5
CPU Speed (MIPS/DMIPS)
2.5
SRAM Bytes
128
Timers
1 x 8-bit
ADC Input
4 ch, 8-bit
Temperature Range (C)
-40 to 125
Operating Voltage Range (V)
2.5 to 5.5
Pin Count
8

Documents

Jump to:

Data Sheet

Programming Specification

Brochures

Product Line Card

Product Line Documents

Brochures

Tips and Tricks

Development Environment

  • Programmers
Programmers
MPLAB PM3 Universal Device Programmer
MPLAB PM3 Universal Device Programmer ( DV007004 )

The MPLAB® PM3 Universal Device Programmer is easy to use and operates with a PC or as a stand-alone unit, and programs Microchip's entire line of PIC® devices as well as the latest dsPIC® DSC devices. When used standalone, data can be loaded and saved with the SD/MMC card (not included).

  • Socket: AC164301   PartNo: PIC12C672 (8P)
  • Socket: AC164312   PartNo: PIC12C672 (8SM)
Learn More
Add To Cart

Similar Devices

Product
Pins
Flash (KB)
RAM (B)
Price 5K
Notes
8
1.75
128
$1.59

8
3.5
128
$1.59

8
1.75
128
$1.87

8
3.5
128
$1.87


RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PIC12C672-04/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-04E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-04I/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-10/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-10E/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-10I/P
0.486700
0.900000
8
PDIP
.300in
Matte Tin
e3
PIC12C672-10/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
PIC12C672T-04I/SMVAO
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
PIC12C672-10E/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
PIC12C672-10I/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
PIC12C672T-04/SM
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
PIC12C672T-04I/SM
0.124400
0.379048
8
SOIJ
.208in
Matte Tin
e3
PIC12C672-04/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
PIC12C672-04E/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
PIC12C672-04I/SM
0.124400
0.266667
8
SOIJ
.208in
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
