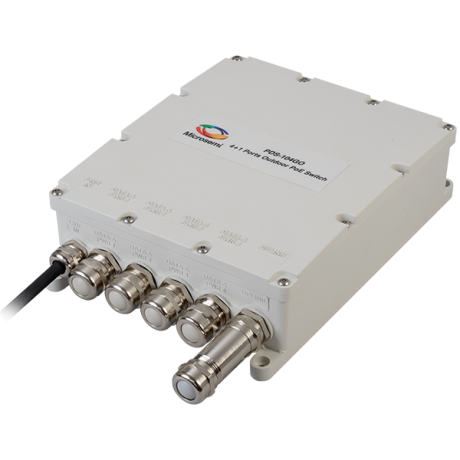

PDS-104GO

4ports, 60W/port, outdoor PoE managed switch

Status: In Production

Features:

  • Number of ports: 4 PoE ports + 1 SFP input port
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP66
  • Remotely managed: SNMP and web
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The 4 ports outdoor PoE switch provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for outdoor WLANs, outdoor IP cameras, or outdoor P2P radios. With VLAN and RADIUS support, the PDS-104GO brings improved security and performance. It provides better safety through centralized management of user profiles and authorized system access. By regulating network traffic in each VLAN, the switch offers increased network performance. There is no need to open the unit during installation. Deployment is simple and straightforward. In addition, it enables remote monitoring and control of the devices’ status, including remote reset. The switch extends the reach between the switch and powered devices by an additional 100 meters, to a maximum of 200 meters—a major benefit in many applications. It offers lightning protection to the switch itself and to the indoor network.

Additional Features
  • Number of ports: 4 PoE ports + 1 SFP input port
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP66
  • Remotely managed: SNMP and web
  • Extends network reach by additional 100m
  • Includes integral surge protection
  • Plug ‘n Play installation (installer does not have to open unit)
  • Regulatory compliance: IEEE 802.3at (PoE, RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B, EN 55024, EN61000-4-5 Class 5 (6 kV CM), VCCI
  • Surge protection: GR-1089-CORE Issue 6, ITU-T K.20 6 kV on AC lines
  • Safety: UL60950-1, UL-69950-22, GS Mark
  • Other standards: Dust and water intrusion - IEC60529, Level IP66; NEMA 250
Parametrics
Name
Value
Product Type
PoE Switches
PoE Systems Type
Switch
PoE Standard
IEEE 802.3at
Power Per Port
60W
Operating Environment
Outdoor
Number of Ports
4
Data Rate
1 Gbps
Managed
Yes
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-40 to 50
Warranty (Years)
5

Documents

Jump to:

Data Sheets


455KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PDS-104GO/AC/M-CC
2500.000
2960.000
N/A
N/A
535x395x263mm
N/A
N/A
PDS-104GO/AC/M-IN
2850.000
3360.000
N/A
N/A
535x395x263mm
N/A
N/A
PDS-104GO/AC/M-NA
2900.000
3400.000
N/A
N/A
535x395x263mm
N/A
N/A
PDS-104MO/AC/M-IN
2850.000
3360.000
N/A
N/A
575x490x406mm
N/A
N/A
PDS-104MO/AC/M-NA
2900.000
3400.000
N/A
N/A
535x395x263mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
