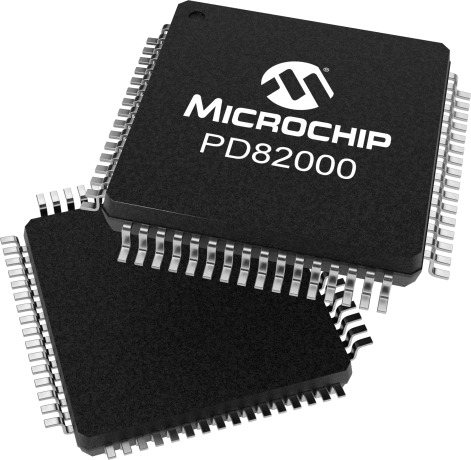

RPF DPU Controller

PD82000

RPF DPU Controller

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's PD82000 RPF DPU Controller is used in tandem with the PD70224 Ideal Dual Diode Bridge and with the PD70101 or PD70201 RPF PD Interfaces to build a complete multi-channel RPF DPU system.

RPF DPU Chipset Features:

Reverse polarity protection
Up to 16 lines FairPower™ sharing
PSE-DPU Signaling (Dying Gasp, AC/BAT operation, etc)
Battery Backup Support
Per line Monitoring & control capabilities
Support low power mode
Field Upgradable

PD82000 Firmware Version

2.12 - Supports TS 101 548 V2.1.1 DPU

Additional Features
  • I²C communication with DPU host up to 400 kHz
  • Up to 16 lines FairPower sharing
  • Per line current measurement
  • Supports Power Good Status (PGS) and DPU Dying Gasp (DDG) IRQ signals to host
  • Per line cable disconnect detection
  • Supports Low Power Mode (LPM) to save PSE battery power
Parametrics
Name
Value
Application
PD for DPU
Ports
4 to 16
Standard
ETSI TS 101 548 V2.1.1
Supported SR Class
SR1(10W), SR2 (15W), SR3(21W)
Interface
I²C
Oerating Temperture
-40 to 85
Package Carrier
Tray
