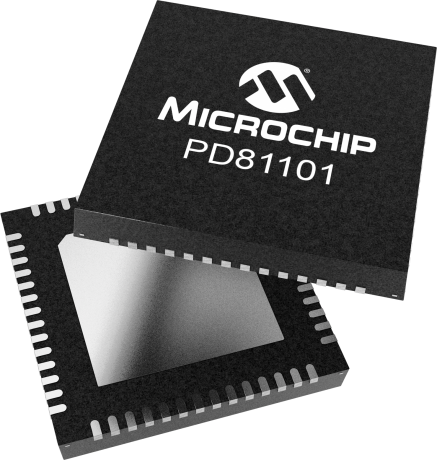

Power Sourcing Equipment (PSE) Driver

PD81101

ETSI TS 548-compliant, SIngle Port PSE

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

Microchip's PD81101 is a single port, mixed-signal, high-voltage Power Sourcing Equipment (PSE) driver. The device is utilized in FTTdp Home Gateways, Modems and Routers and enables Reverse Power Feeding to the Distribution Point Unit (DPU) on the same data line connecting between DPU and Customer Premise Equipment (CPE). It enables detection of compliant Powered Devices (PDs), thus, ensuring safe power feeding and disconnection of ports with minimum of external components. With the external PD81000 MCU, the PD81101 allows the development of fully ETSI TS 101 548 Residential Gateways.

RPF PSE Chip Set -  PD81000 (RPF PSE Controller) + PD81101 (PSE Driver)

Additional Features
  • Internal FET
  • Internal Sense Resistor
  • I²C or UART host interface
  • ETSI TS 101 548 -compliant
  • Support for RPF classes: SR1(10W), SR2 (15W), SR3 (21W)
Parametrics
Name
Value
Application
PSE for CPE
Ports
1
1-Pair Power
21W
Standard
ETSI TS 101 548 V2.1.1
Supported SR Class
SR1(10W), SR2 (15W), SR3(21W)
FETs
Internal 0.2Ω
Sense Resistor
Internal 0.1Ω
Interface
I²C
Oerating Temperture
-40 to 85
Package Carrier
Tape & Reel

Documents

Jump to:

Data Sheets

User Guides


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD81101ILQ-TR-LE
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
