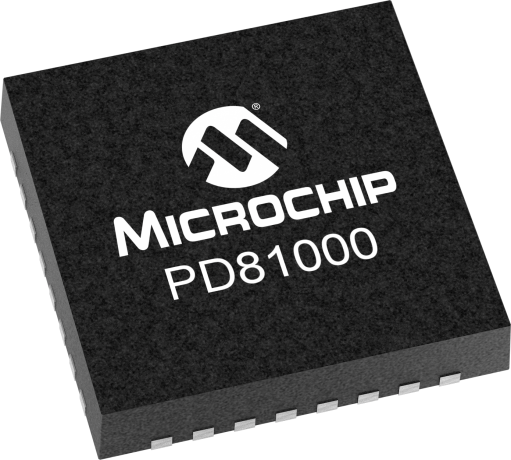

RPF PSE Controller

PD81000

RPF PSE Controller

Status: In Production

View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD81000 RPF PSE controller is used in conjunction with the PD81101 RPF PSE driver for implementation of ETSI TS 101 548-compliant G.FAST residential gateways.

The PD81xxx series is utilized in FTTdp Home Gateways, Modems and Routers and enables Reverse Power Feeding to the Distribution Point Unit (DPU) on the same data line connecting between DPU and Customer Premise Equipment (CPE)s. The PD81101 & PD81000 chipset supports DPU detection and classification in the presence of MELT signatures, according to ETSI TS 101 548

RPF PSE Chip Set -  PD81000 (RPF PSE Controller) + PD81101 (PSE Driver)

PD81000 Firmware Version

2.8103 - Supports main requirements of ETSI TS 101 548 V2.1.1 PSE, Multi-class support
2.8101 - Supports main requirements of ETSI TS 101 548 V2.1.1 PSE

Additional Features
  • DPU detection and classification in the presence of MELT signatures, according to ETSI TS 101 548
  • Foreign DC voltage detection
  • Off-hook phone detection and line disconnection
  • Support signaling indication to DPU through RPF voltage modulation (DGL/ACM/BAT)
  • Programmable I²C address
  • Interrupt output pin for system and port events
Parametrics
Name
Value
Application
PSE for CPE
Ports
1
Standard
ETSI TS 101 548 V2.1.1
Supported SR Class
SR1(10W), SR2 (15W), SR3(21W)
Interface
I²C
Oerating Temperture
-40 to 85
Package Carrier
Tray
