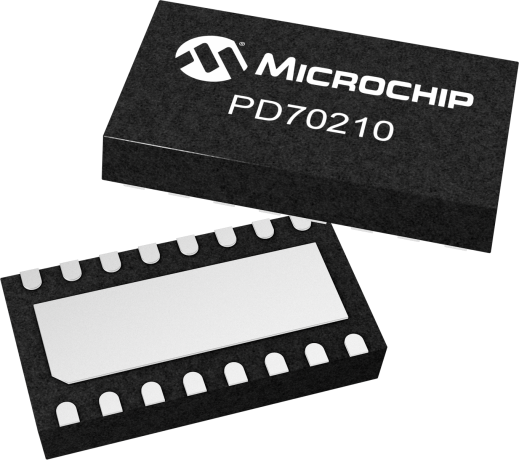

product primary image

PD70210

IEEE 802.3at / PoH PD front-end IC w/internal 0.3 Ohm FET

Status: In Production

Features:

  • Supports IEEE 802.3af/at, HDBaseT, with 2-pair or 4-pair configurations
  • PD detection and programmable classification
  • 2, 3, 4, and 6 event classification
  • Integrated 0.3Ω isolating (series-pass) FET
  • In-rush current limiting
  • Less than 5 µA offset current during detection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD70210 device is an advanced Powered Device (PD) interface controller (front-end IC) for powered devices in PoE applications. It supports IEEE 802.3af, IEEE 802at, HDBaseT, and general 2- pair or 4-pair configurations. The PD70210 device includes an advanced classification block that supports 2, 3, 4, and 6 event classification. Using the SUPP_Sx pins, they also identify which of the four pairs of the cable actually receive power and generates appropriate flags. The IC features an internal bleeder for rapidly discharging the input capacitor of the DC–DC converter, so as to ensure fast re-detection and port power-up in case of sudden removal and re-insertion of the Ethernet cable into RJ-45.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • Supports IEEE 802.3af/at, HDBaseT, with 2-pair or 4-pair configurations
  • PD detection and programmable classification
  • 2, 3, 4, and 6 event classification
  • Integrated 0.3Ω isolating (series-pass) FET
  • In-rush current limiting
  • Less than 5 µA offset current during detection
  • Lead-free DFN-16/QFN-38 package
  • 16-pin, 5 × 4mm MLPD
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af, IEEE 802.3at, dual-IEEE 802.3at, PoH
IC Type
PD front end
POE Type
AT Type 2 / PoH
PoE Class
1-4
Output Power
95W
Maximum Current
2A
Maximum Channel Resistance
0.3 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial

Documents

Jump to:

Data Sheets

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
IEEE802.3at/bt Type 2 / PoH PD EVB PD70210 PD and PD70224 IdealBridge
IEEE802.3at/bt Type 2 / PoH PD EVB PD70210 PD and PD70224 IdealBridge ( PD70224EVB )

PD70224EVB evaluation board provides designers with the environment needed for evaluating the performance and implementation of PD applications based on PD70224 and PD70210 devices. The board uses a single PD device, PD70210ILD, to support the detection, class, and power supplying phases on the 2/4 pairs of the Cat5 cable. The EVB supports a standard Twin HDBaseT interface and compatible to...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70210ILD-TR
0.000000
0.153333
16
VDFN
5x4x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
