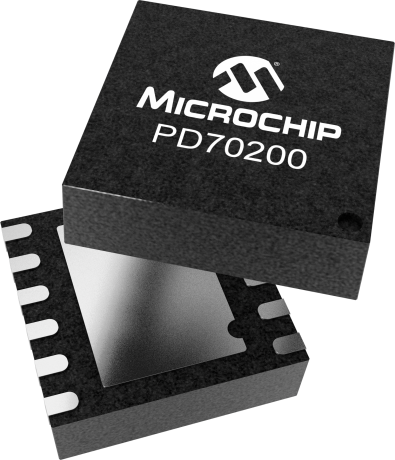

product primary image

PD70200

IEEE 802.3at PD front-end IC w/internal 0.6 Ohm FET

Status: In Production

Features:

  • Designed to support IEEE 802.3at Type 2 standard
  • PD detection & programmable classification signature
  • Two-events classification flag
  • Signature resistor disconnection after detection
  • Integrated 0.6Ω isolating switch and inrush current limiter
  • 4-pairs support with a single PD70200 IC for up to 48W
  • 4-pairs support with two PD70200 ICs for up to 96W
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PD70200 device is a part of Microchip’s series of Power over Ethernet (PoE) Powered Devices (PDs). The device transmits integrated power and analog data in a single 12-pin package. It is used in PDs, thus enabling next generation network devices to share power and data over the same cable. Microchip’s new PD family offers a solution to any PD application compliant with IEEE 802.3af and IEEE 802.3at standards and 4-pairs extra power applications. The IC family’s components can be used in both indoor and outdoor applications. The device family meets all PD-side-standards such as:

  • Detection classification
  • Integrated isolation switch with inrush current limiter, and over-current protection
  • Two-events classification recognition and AT flag generation

In addition, the devices have a discharge mechanism for a DC / DC input capacitor, ensuring quick redetection capability in case the RJ-45 plug is disconnected and reconnected within a short time span. The PD70200 IC design specifically supports IEEE 802.3at Type 2 standard, including two events classification detection that enables the PD to distinguish whether the connected power source equipment (PSE) is IEEE 802.3at or IEEE 802.3af based. The PD70200 IC is designed to support 4 pair applications for PDs that require higher power.

Start your PoE PD power supply design using Microchip MPLAB® Analog Designer.

Additional Features
  • Designed to support IEEE 802.3at Type 2 standard
  • PD detection & programmable classification signature
  • Two-events classification flag
  • Signature resistor disconnection after detection
  • Integrated 0.6Ω isolating switch and inrush current limiter
  • 4-pairs support with a single PD70200 IC for up to 48W
  • 4-pairs support with two PD70200 ICs for up to 96W
  • Less than 10 µA offset current during detection
  • Single DC voltage input (37V – 57V)
  • Wide operating temperature range: -40°C to 85°C
  • On-chip thermal protection
  • 12-pin 3mm × 4mm package
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PD IC
Standards Supported
IEEE 802.3af, IEEE 802.3at, dual-IEEE 802.3at
IC Type
PD front end
POE Type
AT Type 2
PoE Class
1-4
Output Power
47W
Maximum Current
1.2A
Maximum Channel Resistance
0.6 Ohm
Operating Temperature (C)
–40 to 85
Temperature Grade
Industrial

Documents

Jump to:

Data Sheets


Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD70200ILD-TR
0.000000
0.000000
12
VDFN
4x3x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
