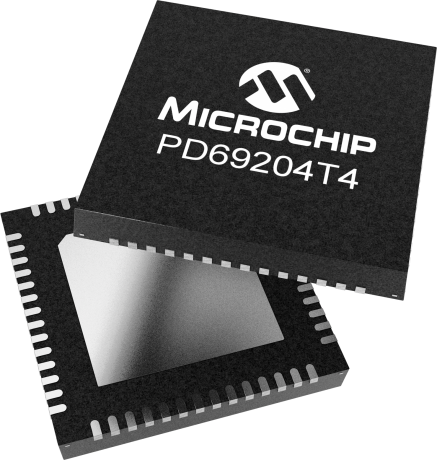

PD69204T4

IEEE 802.3bt Type 4 / PoH, 4 ports, fully integrated PSE manager, industrial temp

Status: In Production

Features:

  • 4 independent PoE channels
  • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
  • Supports three and six event classification based on PoH
  • Drives 2-pair power ports or 4-pair ports (combining 2 PoE channels)
  • Supports pre-standard PD detection
  • Single DC voltage input (32V to 57V), built in 3.3V and 5V regulators, input voltage out of range protection
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The PoE manager IC integrates power, analog, and state-of-the-art logic into a single 56-pin, plastic QFN package. The device is used in Ethernet switches and midspans to allow network devices to share power and data over the same cable. The PD69204T4 device is a 4-port, mixed-signal, and high-voltage PoE driver. Together with the PD692x0 external MCU, it performs as a PSE system. The PoE controller, PD692x0, is a cost-effective, pre-programmed MCU designed to implement enhanced mode PoE. PD69204T4 supports supply voltages between 32V and 57V without additional power supply sources. A system that powers over four pairs can be implemented by combining two ports of PD69208M, enabling a high-power delivery to compatible PD devices. An on-going monitoring of system parameters for the host software is available via communication. Internal thermal protection is implemented in the chip. PD69204T4 is a low-power dissipation device that uses internal MOSFETs and internal 0.1Ω sense resistors. PD69204T4 is available in a 56 pin, 8 mm x 8 mm QFN package.

Additional Features
  • 4 independent PoE channels
  • Complies with IEEE 802.3af, IEEE 802.3at and IEEE 802.3bt
  • Supports three and six event classification based on PoH
  • Drives 2-pair power ports or 4-pair ports (combining 2 PoE channels)
  • Supports pre-standard PD detection
  • Single DC voltage input (32V to 57V), built in 3.3V and 5V regulators, input voltage out of range protection
  • Wide ambient temperature range: -40°C to +85°C, on-chip over-temperature thermal protection and monitoring
  • Low power dissipation (0.1 Ohm sense resistor and 0.2 Ohm MOSFET Rdson per channel)
  • 4 x direct address configuration pins
  • Continuous port monitoring and system data
  • Configurable load current setting
  • Power soft start mechanism
  • Voltage monitoring / protection
  • Internal power on reset
  • Can be cascaded to up to 12 PoE devices (96 ports)
  • Programmable threshold temperature alarm limit
  • PD69208T4: 56-pin, 8 x 8mm QFN
  • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PSE Manager
Standards Supported
IEEE 802.3af, IEEE 802.3at, IEEE 802.3bt, UPoE, PoH
Ports
4
2-Pair Power
47.5W
4-Pair Power
95W
Maximum Current
0.94A
PoE Class (0-8)
0-8
PoE Type (1-4)
1-4
FETs
Internal 0.2Ω
Sense Resistor
Internal 0.1Ω
Operating Temperature
–40 to 85
PoE Controller
PD69200 / PD69210 / Marvell ISSR
Temperature Grade
Industrial

Documents

Jump to:

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
4 x 2-pair + 4 x 4-Pair PSE EVB featuring PD69208T4 + PD69200 w/IEEE802.3bt FW
4 x 2-pair + 4 x 4-Pair PSE EVB featuring PD69208T4 + PD69200 w/IEEE802.3bt FW ( PD-IM-7604-4T4H )

The PD-IM-7604-4T4H evaluation board is developed based on PD69208T4, PD69204T4 and PD69200 chipsets, and demonstrates the operation of four 4-pair ports and four 2-pair ports systems. The evaluation system provides designers with the required environment to evaluate the performance and implementation of PD69204T4 (four ports) and PD69208T4 (eight ports) PoE managers and PD69200 PoE

...

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD69204T4ILQ-TR-LE
0.000000
0.460000
56
VQFN
8x8x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
