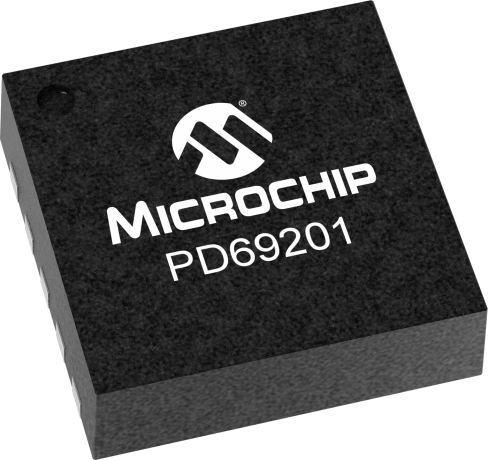

product primary image

PD69201

IEEE 802.3af/at single port PoE PSE controller + manager

Status: In Production

Features:

  • Supports IEEE 802.3af and IEEE 802.3at standards
  • Includes two-event classification
  • I2C host interface
  • Low thermal dissipation (internal 100 mΩ sense resistor)
  • Continuous port and system data monitoring
  • Voltage monitoring and protection
View More
Overview
Documents
Development Environment
RoHS Information
Add to Cart

Device Overview

Summary

Microchip’s PD69201 device is an IEEE® 802.3af and IEEE 802.3at compliant single-port Power over Ethernet (PoE) Manager for use in Ethernet switches to allow network devices to share power and data over the same cable. With minimal external components, the PD69201 supports both IEEE 802.3af/at and Legacy Power Devices (PDs). Integrating power, analog, and state-of-the-art logic, the PD69201 is available in a 10-pin, 3 mm × 4 mm DFN package.

Additional Features
  • Supports IEEE 802.3af and IEEE 802.3at standards
  • Includes two-event classification
  • I2C host interface
  • Low thermal dissipation (internal 100 mΩ sense resistor)
  • Continuous port and system data monitoring
  • Voltage monitoring and protection
  • Power soft-start mechanism
  • On-chip thermal protection
  • Temperature grade: industrial, –40°C to 85°C
  • MSL1, RoHS compliant
Parametrics
Name
Value
Product Type
PSE Manager
Standards Supported
IEEE 802.3af, IEEE 802.3at
Ports
1
2-Pair Power
40W
4-Pair Power
NA
Maximum Current
1A
PoE Class (0-8)
0-4
PoE Type (1-4)
1-2
FETs
Internal 340 mOhms
Sense Resistor
Internal 100 mOhms
Operating Temperature
-40 to 85
PoE Controller
Auto mode
Host Interface
I2C
Temperature Grade
Industrial

Documents

Jump to:

Data Sheets


475KB

Errata

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
1 x 2-pair IEEE 802.3at PSE EVB featuring PD69201
1 x 2-pair IEEE 802.3at PSE EVB featuring PD69201 ( PD-IM-7601 )

The PD-IM-7601 evaluation board provides the designer with the needed environment to evaluate the performance and the implementation of a single 2-pair port PoE application based on the PD69201 PoE Manager. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with maximum flexibility and ease in configuration.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Dimension
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD69201ILD-TR
0.000000
0.000000
10
VDFN
4x3x1.0mm
NiPdAu
e4
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
