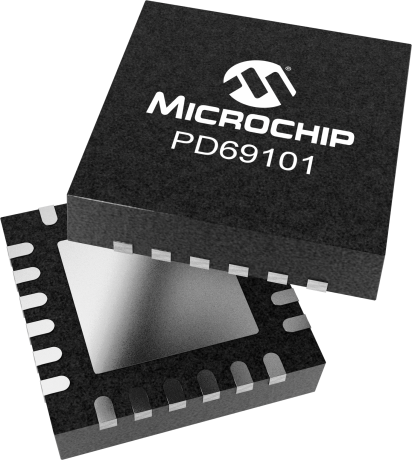

PD69101

IEEE 802.3at single port PoE PSE controller + manager, industrial temp

Status: In Production

Features:

  • 1-port PoE PSE manager with internal 0.34Ω FET
  • DC disconnect
  • IEEE 802.3af and legacy detection
  • IEEE 802.3at-compliant
  • Direct LED driving
  • SPI host interface
  • 24-pin, 4mm x 5mm QFN
  • MSL3, RoHS compliant
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

A single port, mixed-signal, high-voltage PoE driver. The device is utilized in Ethernet switches and enables network devices to share power and data over the same cable. It enables detection of IEEE 802.3af-2003 compliant PDs (Powered Devices) and IEEE 802.3at high power devices ensuring safe power feeding and disconnection of ports with full digital control and a minimum of external components. Integrating power, analog and state of the art logic, the PD69101 device fits into a single 24-pin, plastic QFN package. A “plug and play” device, the PD69101 executes all real-time functions as specified in the IEEE 802.3af-2003 (“AF”) and IEEE 802.3at High Power (“AT”) standards, including load detection, “AF” and “AT” classification, and using Multiple Classification Attempts (MCA). The PD69101 is designed to detect and disable disconnected ports, utilizing DC disconnection methods, as specified in the IEEE 802.3af-2003 and IEEE 802.3at-2009 standards. It can optionally detect legacy/pre-standard PD devices. The PD69101 also provides PD protection such as over-load, under-load, over-voltage, over-temperature and short-circuiting. It supports supply voltages ranging from 44V to 57 VDC with no need for additional power supply sources. The PD69101 is a low power device using an internal 0.34Ω MOSFET and an external 0.5Ω sense resistor. The chip includes built-in internal thermal protection. Two LEDs provide port state's indication and port type (AF/AT).

Additional Features
    • 1-port PoE PSE manager with internal 0.34Ω FET
    • DC disconnect
    • IEEE 802.3af and legacy detection
    • IEEE 802.3at-compliant
    • Direct LED driving
    • SPI host interface
    • 24-pin, 4mm x 5mm QFN
    • MSL3, RoHS compliant
Parametrics
Name
Value
Product Type
PSE Manager
Standards Supported
IEEE 802.3af, IEEE 802.3at
Ports
1
2-Pair Power
36.25W
4-Pair Power
NA
Maximum Current
0.725A
PoE Class (0-8)
0-4
PoE Type (1-4)
1-2
FETs
Internal 0.3Ω
Sense Resistor
External 0.5Ω
Operating Temperature
–40 to 85
PoE Controller
Auto mode
Host Interface
Serial monitoring
Temperature Grade
Industrial

Documents

Jump to:

Data Sheets


1255KB

Development Environment

  • Demo & Evaluation Boards
Demo & Evaluation Boards
1 x 2-pair IEEE 802.3at PSE EVB featuring PD69101
1 x 2-pair IEEE 802.3at PSE EVB featuring PD69101 ( PD-IM-7401 )

The PD-IM-7401 evaluation board provides the designer with the needed environment to evaluate the performance and the implementation of PoE applications based on the PD69101 PoE Manager. The evaluation board enables PoE designers to evaluate Microchip's PoE solution with maximum flexibility and ease in configuration.

Learn More
Add To Cart

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD69101ILQ-TR
0.000000
0.153333
24
VQFN
4x5x1.0mm
Matte Tin
e3
PD69101ILQ-13155TR
0.000000
0.153333
24
VQFN
4x5x1.0mm
Matte Tin
e3
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
