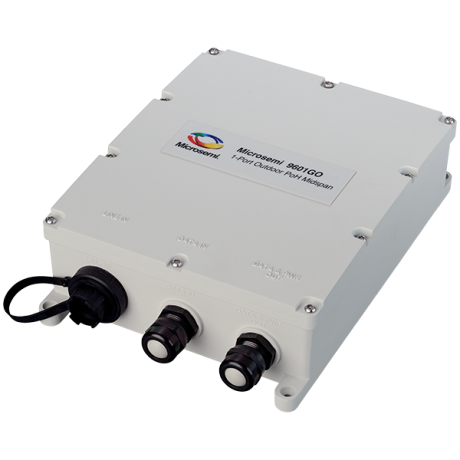

PD-9601GO

1 port, 90W, IEEE 802.3at-compliant, outdoor PoE midspan with surge protection

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 90W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP66
  • Extended temperature range
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 90 Watts of power over Ethernet and offers a IEEE 802.3at-compliant and PoH-compliant cost-effective solution for for outdoor installations, guaranteeing 90 Watts of power and ensuring safe and reliable operation in outdoor environment of any standard PoH data terminal. It allows wireless LAN access points, security network cameras and other IP terminals to receive power, along with data, over standard Ethernet cables, leaving network infrastructure completely unaltered. The PD-9601GO also offers surge protection for both the AC and the PoE ports ensuring the indoor equipment is protected from outdoor surges.

Additional Features
  • Number of ports: 1
  • PoE output: 90W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Outdoor rated: IP66
  • Extended temperature range
  • Regulatory compliance: IEEE 802.3af (PoE, PoH Type1), IEEE 802.3at (PoE+ including 2-event,PoH Type 2), RoHS Compliant, WEEE Compliant, CE
  • EMI: FCC Part 15, Class BEN 55022 Class BEN 55024, VCCI
  • Safety: UL/IEC/EN 60950-1, UL60950-22
  • Surge protection: Meets Surge Protection as specified inGR-1089-CORE Issue 6ITU-T K.20 6 kV on AC lines
  • Other standards: Level1P66; NEMA 250, Level 4XASTM B-117 Corrosion Resistance
  • Compact design
Parametrics
Name
Value
Product Type
90-95W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
90W
Operating Environment
Outdoor
Number of Ports
1
Data Rate
1G
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-40 to 65
Warranty (Years)
5

Documents

Jump to:

Data Sheets


236KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9601GO/AC
2440.000
2900.000
N/A
N/A
535x395x263mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
