PD-9601G

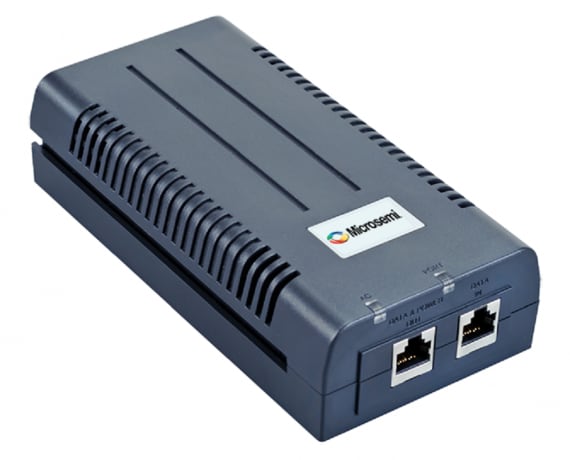

1 port, 95W, IEEE 802.3at-compliant indoor port PoE midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 95W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE+), PoH twin Type 2, PoH twin Type 3 (95 W), RoHS compliant, WEEE compliant, CE
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 95 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solutionfor remote powering of current as well as emerging high power applications. The PD-9601G is designed to power wireless and cellular base stations, pan-tilt-zoom (PTZ) and dome cameras, physical access control with door locks, televisions and interactive displays, point of sale (POS) systems and information kiosks, thin clients and other high power Ethernet end terminals with 95W of power, and is also backward compatible and safe to use with any IEEE 802.3af or IEEE 802.3at terminal such as VoIP phones, IP cameras, and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless Gigabit devices. With the midspan’s plug-and-play installation, they are easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Additional Features
  • Number of ports: 1
  • PoE output: 95W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE+), PoH twin Type 2, PoH twin Type 3 (95 W), RoHS compliant, WEEE compliant, CE
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
  • Compact design
Parametrics
Name
Value
Product Type
90-95W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
95W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-10 to 45
Warranty (Years)
1

Documents

Jump to:

Data Sheets


372KB

Development tools data is currently unavailable.

RoHS Information

Part Number
Device Weight (g)
Shipping Weight (Kg)
Lead Count
Package Type
Package Width
Solder Composition
JEDEC Indicator
RoHS
China EFUP
PD-9601G/AC
475.0000
615.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9601G/AC-EU
660.0000
800.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9601G/AC-JP
660.0000
800.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9601G/AC-UK
660.0000
800.0000
N/A
N/A
495x495x227mm
N/A
N/A
PD-9601G/AC-US
660.0000
800.0000
N/A
N/A
495x495x227mm
N/A
N/A
To see a complete listing of RoHS data for this device, please Click here
Shipping Weight = Device Weight + Packing Material weight. Please contact sales office if device weight is not available.
