PD-9512G

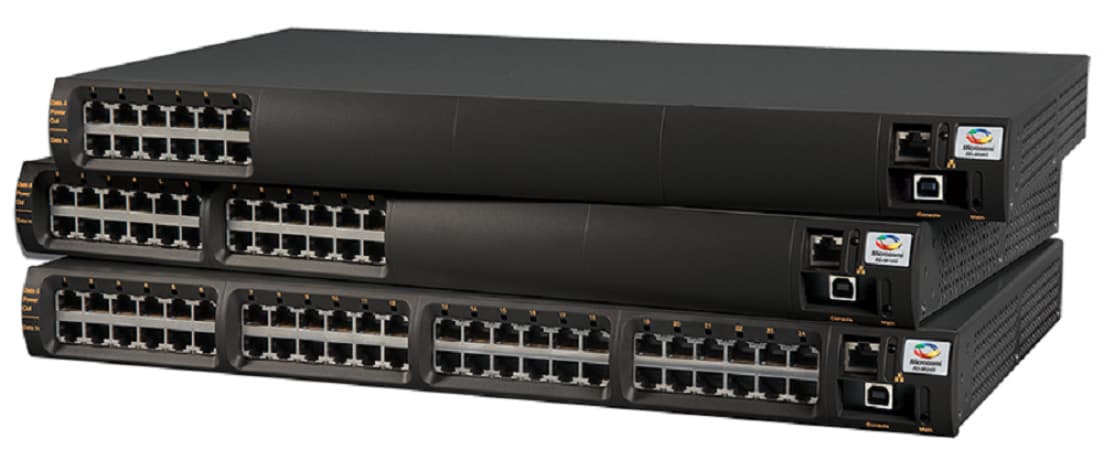

12 ports, 60W, IEEE 802.3at-compliant, indoor EEPoE midspan

Status: In Production

Features:

  • Number of ports: 12
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC and DC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE+ including 2-event, PoH Type 2), RoHS compliant, VCCI, CE, C-Tick
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The twelve ports Energy Efficient PoE (EEPoE) midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution to power network devices such as IP cameras, access control systems, thin clients and other Ethernet powered devices (PD) that require up to 51W, while reducing power losses by almost 3W per link for 25.5W devices. The PD-9512G EEPoE midspan is unique in its ability to deliver power over all 4 pairs of the Cat 5 or better cable, dissipating 50% less power than PoE switches and 2-pair midspans, while fully complying with the IEEE802.3at-2009 standard. EEPoE allows reduced power dissipation to new powered devices and also to the huge installed base of over 100 million existing IEEE standard compliant PDs worldwide. With the midspan’s plug-and-play installation, it is easily and cost-effectively implemented leveraging an existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Additional Features
  • Number of ports: 12
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC and DC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE+ including 2-event, PoH Type 2), RoHS compliant, VCCI, CE, C-Tick
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety:UL/cUL Per EN 60950-1 GS Mark Per EN 60950-1
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
60W
Operating Environment
Indoor
Number of Ports
12
Data Rate
1 Gbps
Managed
Yes
Input Power
AC and DC
Operating Humidity (%)
90
Operating Temperature (°C)
0 to 40
Rack Mountable
Yes
Warranty (Years)
Limited lifetime - including a limitation of 16 years warranty on the power supply and fans.
