PD-9506GC

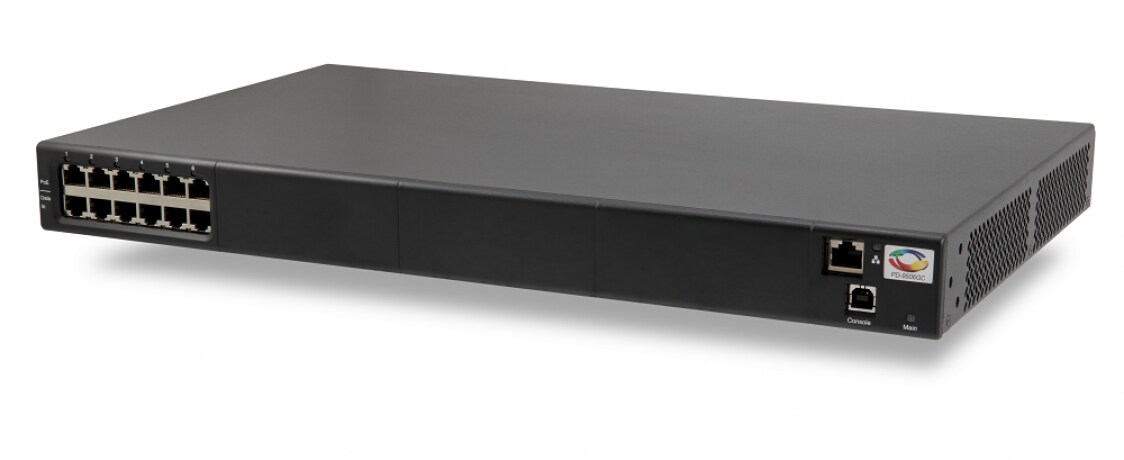

6 ports, 60W, IEEE 802.3bt-compliant, indoor EEPoE midspan

Status: In Production

Features:

  • Number of ports: 6
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3bt, IEEE 802.3af/at, RoHS Compliant and CE
  • EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The six ports PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9506GC is designed specifically to power IEEE 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power. The solution supports IEEE 802.3bt powered devices and is also backward compatible and safe to use with any IEEE 802.3af/at terminal. It can power both existing 10/100Base-T devices and Gigabit devices. With the midspan’s plug and-play installation, it is easy and cost-effective to implement leveraging existing Ethernet infrastructure while at the same time providing the assurance of a future-proof network.

Additional Features
  • Number of ports: 6
  • PoE output: 60W per port
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3bt, IEEE 802.3af/at, RoHS Compliant and CE
  • EMI: FCC Part 15, Class B, EN 55032 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/EN/IEC 60950-1 (Ed.2)
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3bt
Power Per Port
60W
Operating Environment
Indoor
Number of Ports
6
Data Rate
1 Gbps
Managed
Yes
Input Power
AC
Operating Humidity (%)
10 to 90
Operating Temperature (°C)
0 to 40
Rack Mountable
Yes
Warranty (Years)
Limited lifetime - including a limitation of 16 years warranty on the power supply and fans.
