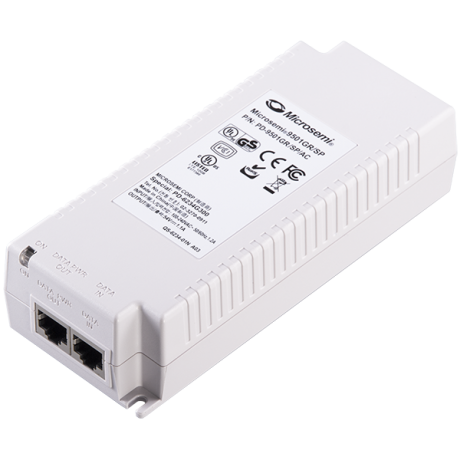

PD-9501GR/SP

1 port, 60W, IEEE 802.3at-compliant midspan

Status: In Production

Features:

  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • Surge protection: EN 61000-4-5 (10/700 µsec, 4 KV), IEC- 61643-21, GR-1089-CORE lightning protection demands, ITU-T K.45 international standard
View More
Overview
Documents
Development Environment
RoHS Information
Add To Cart

Device Overview

Summary

The single port PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current as well as emerging high power applications.
The PD-9501GR/SP provides surge protection functionality optimal for the installation of outdoor PDs. The midspan is designed specifically to power IEEE 802.11n and IEEE 802.3at access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power, and is also backward compatible and safe to use with any IEEE 802.3af terminal such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and emerging wireless 1000Base-T devices such as Wi-MAX and wireless IEEE 802.11n access points. It provides power on all 4-pairs while being backwards compatible to IEEE 802.3af and IEEE 802.3at powered devices.

Additional Features
  • Number of ports: 1
  • PoE output: 60W
  • Data rates: 10/100/1000 Mbps
  • Power input: AC
  • Power cord options: US, EU (Europe), UK, BR (Brazil), AU (Australia), JP (Japan)
  • Regulatory compliance: IEEE 802.3at (PoE), RoHS compliant, WEEE compliant, CE
  • Surge protection: EN 61000-4-5 (10/700 µsec, 4 KV), IEC- 61643-21, GR-1089-CORE lightning protection demands, ITU-T K.45 international standard
  • EMI: FCC Part 15, Class B, EN 55022 Class B (emissions), EN 55024 (immunity), VCCI
  • Safety: UL/cUL Per EN 60950-1, GS Mark Per EN 60950-1
  • Compact design
Parametrics
Name
Value
Product Type
60W PoE
PoE Systems Type
Midspan
PoE Standard
IEEE 802.3at
Power Per Port
60W
Operating Environment
Indoor
Number of Ports
1
Data Rate
1 Gbps
Input Power
AC
Operating Humidity (%)
90
Operating Temperature (°C)
-10 to 40
Warranty (Years)
1
